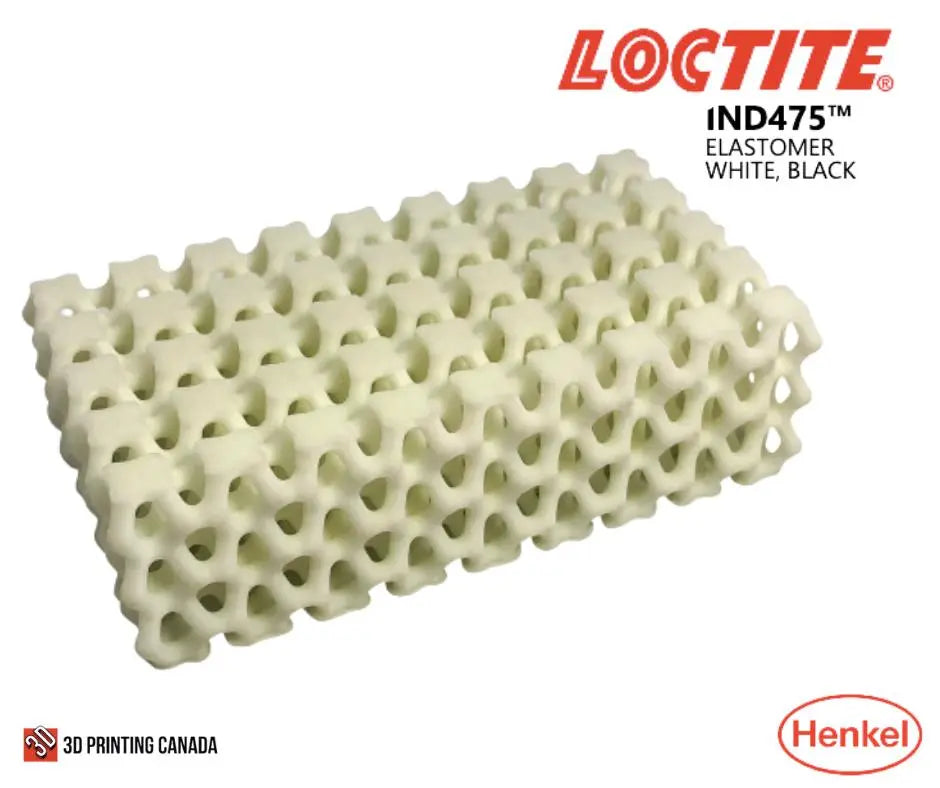

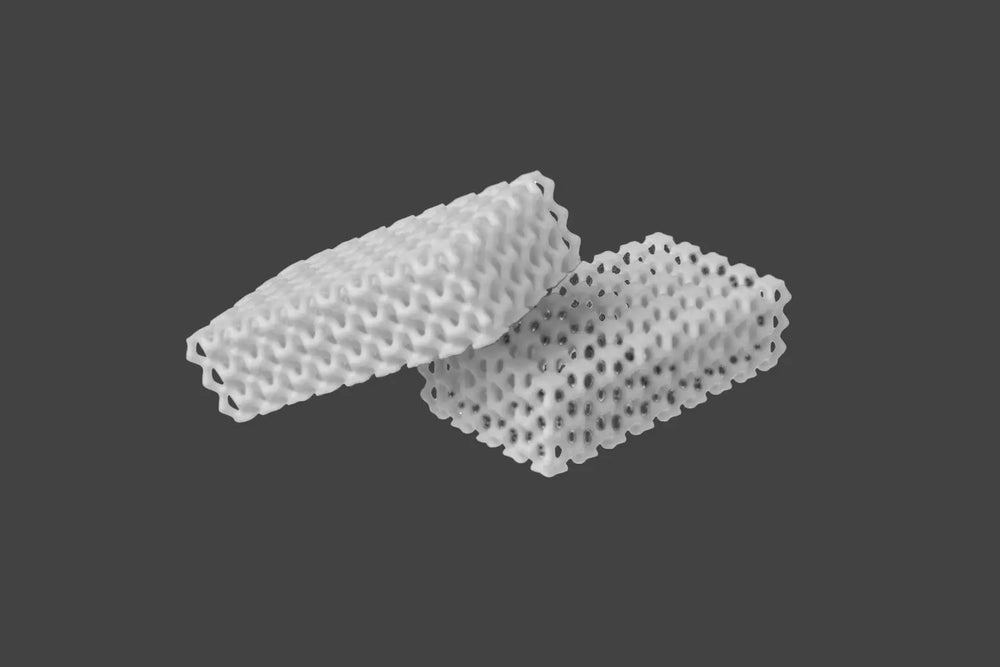

LOCTITE® 3D IND475™ is a single component UV resin that cures to a soft, elastomeric material. This resin is suitable for applications where resilience, snap back and tear resistance is desired such as lattice structure and function prototyping. Easy to print on a variety of platforms making it a superior material for elastomeric applications.
IND475 boasts high resilience, high energy return, true elastomeric behavior and fast printing with low shrinkage which makes it ideal for air and dust gaskets, flexible seals and housings and cushioning pads throughout the industrial, automotive and consumer goods market. Available in Black and White.
Properties
| Mechanical Properties | Measure | Method | Green | Post Processed |
|
Young's Modulus |
MPa | ASTM D638 | - | 1.1 ± 0.5 [1] |
| Tensile Stress at Break | MPa | ASTM D638 | - | 3.1 ± 0.3 [1] |
| Elongation at Break | % |
ASTM D638 |
- | 201 ± 16 [1] |
| Stress at 50% Strain |
MPa |
ASTM D412 | - | 1.3 ± 0.1 [10] |
|
Stress at 100% Strain |
MPa |
ASTM D412 |
- | 2.4 ± 0.3 [10] |
|
Stress at Break |
MPa |
ASTM D412 |
- | 4.6 ± 0.6 [10] |
| Strain at Break |
% |
ASTM D412 |
- | 157 ± 23 [10] |
| Tear Strength | kN/m | ASTM D624 | - | 12.6 ± 0.6 [2] |
| Energy Return | % | Internal | - |
55 [3] |
| Compression Set | % | D395, 22hr | - | 28.7 [9] |
| Shore Hardness (5s) | A | ASTM D2240 | - | 62 [4] |
Other Properties
| Water Absorption (24hr) |
% |
ASTM D570 | - |
2.1 ± 0.1 [6] |
| Water Absorption (72hr) | % | ASTM D570 | - | 4.5 ± 0.1 [6] |
| Solid Density | g/cm ³ | ASTM D792 | 1.03[5] | 1.06 [5] |
| Volumetric Shrinkage | % | Internal | - | -27 [5] |
| Thermal Conductivity | W/(m-K) |
ASTM D930 |
- | 0.17 [11] |
| Heat Capacity | J/(g-K) | - | 0.41 ± 0.01 [11] |
Biocompatibility
| Irritation | ISO 10993-23* | Comply[8] |
