Key Features
- Dual Performance Tiers: Choose the 150m³/h AP2 for desktop laser machine or the 700m³/h AP2 Max for industrial-grade laser cutter.
- Up to 7 Layer Filtration: Removes 99.97% of particles, with an exclusive formaldehyde filter on the AP2 Max.
- 4x Filter Capacity: The AP2 Max features a larger filter system for a 4x longer lifespan and fewer changes.
- Cyclone Separation Technology: Capture Large Particles, 10X Pre-filter's Lifespan.
- Intelligent Control：Auto-On/Off, Sync with xTool Lasers & Tailored Setting for Every Material.
xTool SafetyPro™

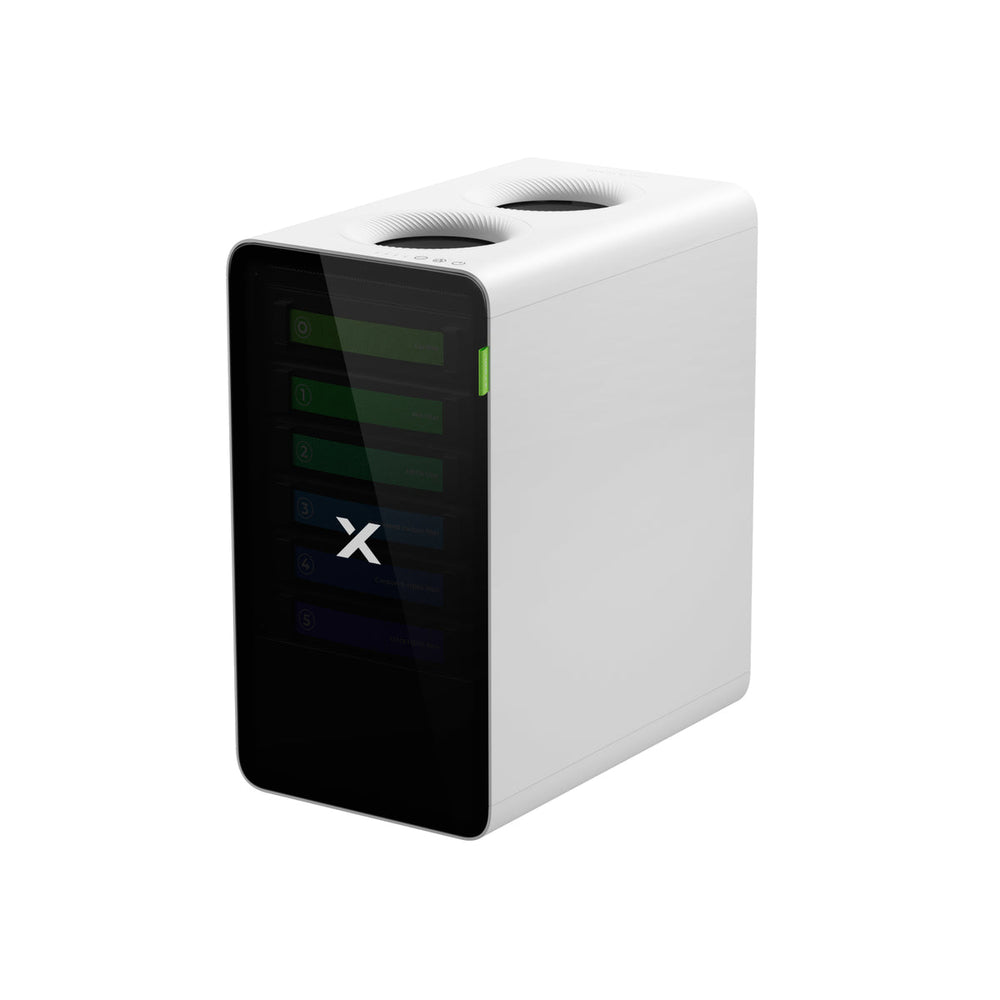

AP2 & AP2 Max
Unrivaled dust and odor removal, engineered for all laser users
Which One Suits You Better?

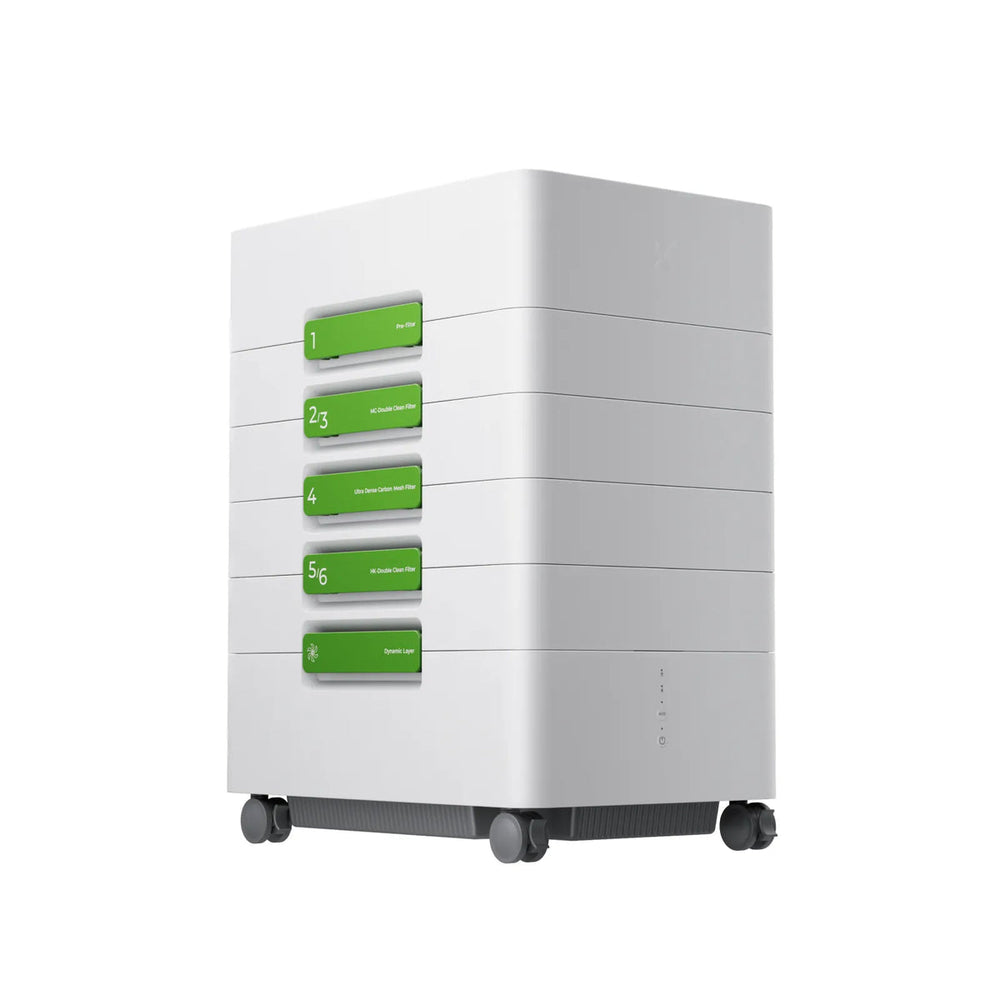

High-Density Filtration, Layer by Layer, Total Peace of Mind
Featuring up to 7 stages of filtration, our dense, heavy-duty filter stacks are engineered for the maximum removal of fumes and odors, ensuring healthy breathing during laser processing.
Authority Tested,
Pure Air Guaranteed
SGS approved, setting a new standard for laser purifiers, enjoying fresh air anytime.
Discover the Testing Details
Test Method:
Tested in a closed space, 15-minute continuous acrylic cutting. Six professional scent assessors rated the air before and after using the purifier, Without the purifier, the rating was 3.5 (noticeable odor). With the purifier, the rating dropped to 0 (no odor).
Odor-free
cutting acrylic
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046472
Test Method:
Tested with A2 dust to evaluate single-pass efficiency for 0.1–2.5 µm and 0.1–10 µm particles, achieving 99.99% PM2.5 removal.
99.99
PM2.5 Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046172.
Test Method:
Initial fractional efficiency of a filter per EN ISO 29463-5:2018 including MPPS determination, and additional measure efficiency at 0.3μm.
99.97
0.3µm Dust Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT240900044273.
Test Method:
Single-pass TVOC removal efficiency, with continuous monitoring of TVOC concentration after 30 minutes of filtration.
99.99
TVOC Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046472
Test Method:
Single-pass toluene removal efficiency, with continuous monitoring of toluene concentration after 30 minutes of filtration.
99.9
Toluene Removal
*Certification provided by SGS-CSTC Standards Technical Services Co., Ltd.,
Report No. - SHFT241000046472
SuperCyclone Separation Technology
The Best Solution for Dust Collection
99% Capture Large Particles
The AP2 features a powerful array of 36 cyclones, generating centrifugal force to efficiently separate particles, prevent clogging, and extend filter life. The AP2 Max doubles this to 72 cyclones, offering superior pre-filtration for heavy-duty industrial jobs.
Expand Pre-filter‘s Lifespan by 10 Times
With a cyclone in place, all large particles can be separated, extending the lifespan of filters up to 10 times compared to those without a cyclone.
Washable and Reusable
It is easy to clean and reuse. Simply wash it to keep the cyclone working like new, saving you the cost of replacing pre-filters.
Powerful Airflow, Rapid Purification
The AP2’s 150m³/h airflow efficiently purifies desktop tasks. The AP2 Max unleashes a dominating 700m³/h, engineered for thick, large-format industrial laser and welding jobs.
Medical-Grade Protection
Ultra-Dense Mesh, Stronger Absorption
We arranged carbon particles 400 times smaller in a high-density structure for enhanced absorption.
AP2 Max Exclusive
Decomposing Formaldehyde for a Deeper Clean
The formaldehyde filter continuously captures and decomposes harmful formaldehyde molecules, breaking them down into harmless water and CO2 for a more thorough purification.
Intelligent Control
Beyond Convenience, Smarter Than You Think
Auto-On/Off, Sync with xTool Lasers
The purifier automatically starts and shuts down with the xTool lasers. You can also customize the shutdown time to ensure all fumes are expelled.
Tailored Setting for Every Material
The purifier automatically matches the optimal filtration mode based on the material selected by the user.
Filter Life Cycle Monitoring
The system monitors filter usage in real-time, preventing premature replacements or missed change intervals, and optimizing cartridge efficiency.
Well-Designed for A Better Experience
Upgraded Motor, Super Suction
High-torque centrifugal motor, bringing greater fan output power, rapid exhaust of polluted gases.
Easy to Change Filter Cartridge
Pull-out Magnetic Door Design, no need to dismantle the machine. Simply pull to open, making it easy to remove, wash, and replace the filter.
Low-dB Operation, Non-Disruptive
PP adjustable hard tube has good flexibility and plasticity, can be bent and adjusted according to the actual needs, to adapt to different installation environments.
The Safer Way to Create
xTool SafetyPro™ Series
Specifications
| Dual Performance Tiers | Choose the 150m³/h AP2 for desktop laser machine or the 700m³/h AP2 Max for industrial-grade laser cutter. |
| Up to 7 Layer Filtration | Removes 99.97% of particles, with an exclusive formaldehyde filter on the AP2 Max. |
| 4x Filter Capacity | The AP2 Max features a larger filter system for a 4x longer lifespan and fewer changes. |
| Cyclone Separation Technology | Capture Large Particles, 10X Pre-filter's Lifespan. |
| Intelligent Control | Auto-On/Off, Sync with xTool Lasers & Tailored Setting for Every Material. |
| PM2.5 Removal | 99.99% |
| 0.3µm Dust Removal | 99.97% |
| Odor-free (cutting acrylic) | Odor-free |
| TVOC Removal | 99.99% |
| Toluene Removal | 99.9% |
| Cyclone Capture Efficiency | The AP2 features a powerful array of 36 cyclones, generating centrifugal force to efficiently separate particles, prevent clogging, and extend filter life. The AP2 Max doubles this to 72 cyclones, offering superior pre-filtration for heavy-duty industrial jobs. |
| Pre-filter Lifespan Extension | With a cyclone in place, all large particles can be separated, extending the lifespan of filters up to 10 times compared to those without a cyclone. |
| Cyclone Maintenance | Washable and Reusable. It is easy to clean and reuse. Simply wash it to keep the cyclone working like new. |
| Airflow (AP2) | 150m³/h |
| Airflow (AP2 Max) | 700m³/h |
| Ultra-Dense Activated Carbon | Carbon particles arranged 400 times smaller in a high-density structure for enhanced absorption. |
| Formaldehyde Filter (AP2 Max) | Continuously captures and decomposes harmful formaldehyde molecules into water and CO2. |
| VOC Removal Test Method | Tested with PID sensor equipment. |
| AP2 Max Compatibility | Suitable if machine's fume extraction requirement is 700 m³/h or less and exhaust port diameter is within 60-110mm or 200-250mm. Smart features will not function with other brands. |
| AP2 Compatibility | Designed for machines with smoke extraction capacity of 150m³/h or lower. Supports 3-inch exhaust pipe. |
| Recommended Cyclone Cleaning Frequency | Every 6 months (adjust based on usage conditions). |
