Barcode: P5010390

Dual Performance Tiers: Choose the 150m³/h AP2 for desktop laser machine or the 700m³/h AP2 Max for industrial-grade laser cutter.
Up to 7 Layer Filtration: Removes 99.97% of particles, with an exclusive formaldehyde filter on the AP2 Max.
4x Filter Capacity: The AP2 Max features a larger filter system for a 4x longer lifespan and fewer changes.
Cyclone Separation Technology: Capture Large Particles, 10X Pre-filter's Lifespan.
Intelligent Control：Auto-On/Off, Sync with xTool Lasers & Tailored Setting for Every Material.

xTool SafetyPro™
AP2 & AP2 Max

Unrivaled dust and odor removal, engineered for all laser users

Dual Performance Tiers	Choose the 150m³/h AP2 for desktop laser machine or the 700m³/h AP2 Max for industrial-grade laser cutter.
Up to 7 Layer Filtration	Removes 99.97% of particles, with an exclusive formaldehyde filter on the AP2 Max.
4x Filter Capacity	The AP2 Max features a larger filter system for a 4x longer lifespan and fewer changes.
Cyclone Separation Technology	Capture Large Particles, 10X Pre-filter's Lifespan.
Intelligent Control	Auto-On/Off, Sync with xTool Lasers & Tailored Setting for Every Material.
PM2.5 Removal	99.99%
0.3µm Dust Removal	99.97%
Odor-free (cutting acrylic)	Odor-free
TVOC Removal	99.99%
Toluene Removal	99.9%
Cyclone Capture Efficiency	The AP2 features a powerful array of 36 cyclones, generating centrifugal force to efficiently separate particles, prevent clogging, and extend filter life. The AP2 Max doubles this to 72 cyclones, offering superior pre-filtration for heavy-duty industrial jobs.
Pre-filter Lifespan Extension	With a cyclone in place, all large particles can be separated, extending the lifespan of filters up to 10 times compared to those without a cyclone.
Cyclone Maintenance	Washable and Reusable. It is easy to clean and reuse. Simply wash it to keep the cyclone working like new.
Airflow (AP2)	150m³/h
Airflow (AP2 Max)	700m³/h
Ultra-Dense Activated Carbon	Carbon particles arranged 400 times smaller in a high-density structure for enhanced absorption.
Formaldehyde Filter (AP2 Max)	Continuously captures and decomposes harmful formaldehyde molecules into water and CO2.
VOC Removal Test Method	Tested with PID sensor equipment.
AP2 Max Compatibility	Suitable if machine's fume extraction requirement is 700 m³/h or less and exhaust port diameter is within 60-110mm or 200-250mm. Smart features will not function with other brands.
AP2 Compatibility	Designed for machines with smoke extraction capacity of 150m³/h or lower. Supports 3-inch exhaust pipe.
Recommended Cyclone Cleaning Frequency	Every 6 months (adjust based on usage conditions).

Yes, it is suitable if your machine's fume extraction requirement is 700 m³/h or less and its exhaust port diameter is within 60-110mm or 200-250mm. However, the smart features will not function.The AP2 is designed for machines with a smoke extraction capacity of 150m³/h or lower. If your machine falls within this range, it should work with the AP2. However, you will need to prepare the adapter for the exhaust port yourself.The product supports a 3-inch exhaust pipe. It's compatible with laser machines, hybrid 3D printers with laser modules, and DTF, 3D printers, as long as their exhaust pipe matches this size.The AP2 can be used with IF2 2.0. But AP2 Max can't. The airflow rate of the AP2 Max and an external duct fan are significantly different. Using them together will cause the purifier or the duct fan to stall and trigger a fault alarm.

Is the AP2 Max suitable for other brands of laser cutters and welders?

Is the AP2 suitable for other brands of laser machines?

The AP2 is designed for machines with a smoke extraction capacity of 150m³/h or lower. If your machine falls within this range, it should work with the AP2. However, you will need to prepare the adapter for the exhaust port yourself.

The product supports a 3-inch exhaust pipe. It's compatible with laser machines, hybrid 3D printers with laser modules, and DTF, 3D printers, as long as their exhaust pipe matches this size.

Why isn't the xTool P3 compatible with the AP2?

The AP2 is designed for machines with a fume extraction of 150 m³/h or less, but the P3’s fume extraction is 238 m³/h. The AP2’s airflow cannot meet this demand. As a result, if you connect a P3 to an AP2 for cutting, there will still be significant smoke and odor.

Can the AP2 and AP2 Max be used with IF2 2.0 inline duct fan?

The AP2 can be used with IF2 2.0. But AP2 Max can't. The airflow rate of the AP2 Max and an external duct fan are significantly different. Using them together will cause the purifier or the duct fan to stall and trigger a fault alarm.

Can the air outlets be vented directly into the room?

Yes, exhaust air can be discharged directly into the room because our purified exhaust air meets the air quality requirements for direct indoor exhaust.

How often should the cyclone be cleaned?

It’s recommended to clean it every 6 months, but users can adjust this based on actual usage conditions.

Brand: xTool / Reviews

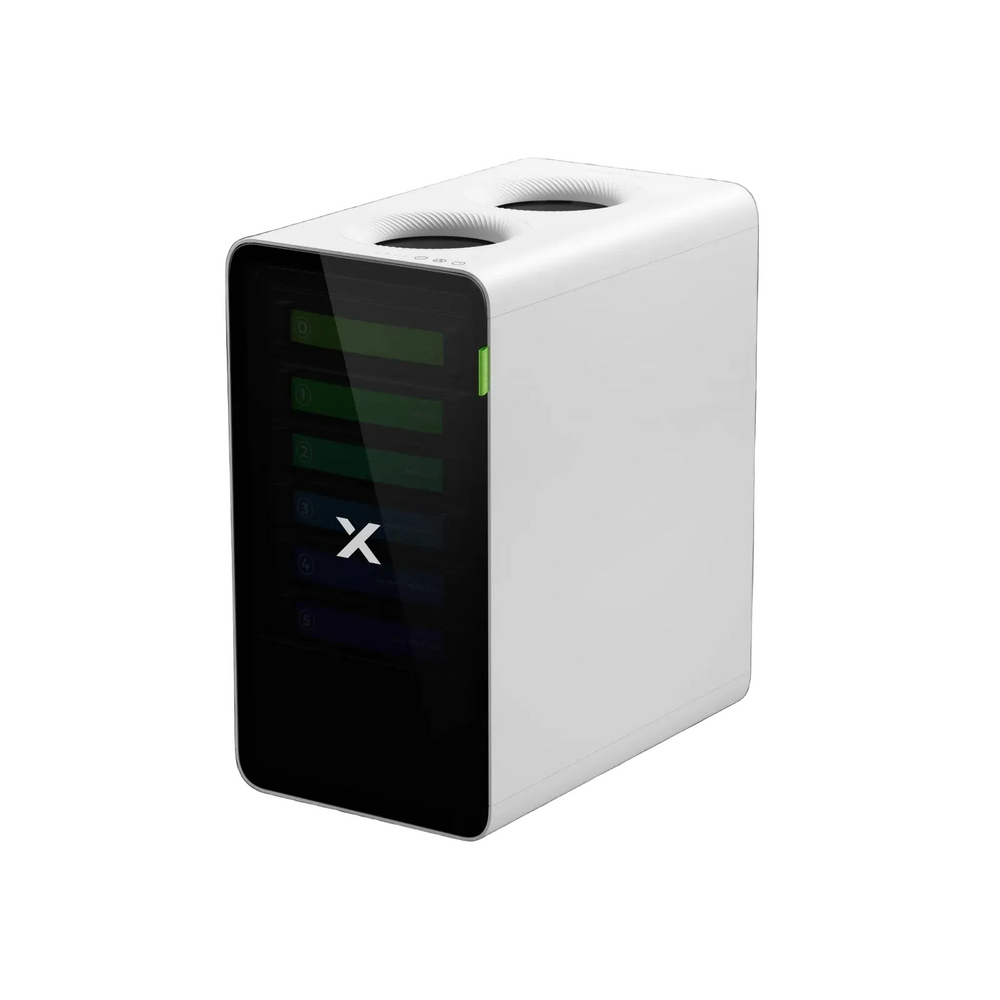

xTool SafetyPro™ AP2

Name: xTool SafetyPro™ AP2
Brand: xTool
SKU: P5010390
Availability: InStock
