Filament Spectrum PA6 CS20 FR V0
Flame-resistant construction material
Spectrum PA6 CS20 FR V0 filament is a new flame-resistant construction material based on polyamide 6. The applied ceramic fillers enhance thermal stability without causing problems with processing. Thanks to the halogen-free flame retardant used, the UL-94 V0 flammability rating is achieved on ?0.4 mm thick printed parts. Spectrum PA6 CS20 FR V0 also has low moisture absorption, high temperature resistance and good electrical insulation. No heated chamber is required during printing and no distortion (shrinkage) occurs. The material is compatible with HIPS and PVOH support materials.
Components manufactured using Spectrum PA6 CS20 FR V0 can be operated at elevated temperatures up to 120°C long-term (20,000h) and up to 160°C short-term (max. 200h).
The raw material from which Spectrum PA6 CS20 FR V0 filament is made of complies with the EN 45545 standard in the railway industry.
To attain the very attractive properties of Spectrum PA6 CS20 FR V0, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.
Tip: Due to the essential content of glass microspheres, it is recommended to use nozzles with diameters exceeding the standard value of 0.4mm. The presence of glass microspheres may also cause wear of standard nozzles; thus it is recommended to use hardened steel or ruby nozzles for prolonged application of Spectrum PA6 CS20 FR V0.
- unprecedentedly low processing shrinkage (linear) <0.1%
- high temperature resistance up to 160°C for short term operation (max. 200h).
- high temperature resistance up to 120°C for long-term operation (20,000h)
- heat deflection temperature - HDT A 90°C (ISO 75)
- water absorption less than 0.3% (23°C/24h)
- electrical insulator
- flammability rating UL 94 - V0 (thickness ?0.4 mm)
- high mechanical strength
- very strong lamination of layers
- high hardness and rigidity of manufactured elements
- all applications where fire resistance is important
- manufacturing of components with good electrical insulation properties
- manufacturing of parts to be operated in high temperature conditions,
- manufacturing of elements exposed to high temperature changes
Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.
VERIFY YOUR SPOOL – the most precise quality control system on the market
Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly significant impact of process parameters on product dimensions and material homogenization.
During the production each 1mm of Spectrum Filament is being continuously measured in 2 axes with ±0.8µm accuracy, which allow obtaining a high-quality final product. To prove this, Spectrum Filaments, as one of the few manufacturers in the world, has introduced the possibility of online presentation, individually for each manufactured spool:
- the course of diameter on the entire length of the spool,
- mean diameter,
- standard deviation.
Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.
Spectrum color name Black
Dimensional tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool YES
Density 1.49 g/cm³
Net weight 750g
Total weight 1150g
Recommended print settings
Printing temperature 265-290°C
Heated bed necessary
Heated bed temperature >80°C
Printing speed 30-70mm/s
Closed chamber Not necessary
Dimensions of the spool
Outer diameter 200mm
Inner diameter 52mm
Empty spool weight ± 220g

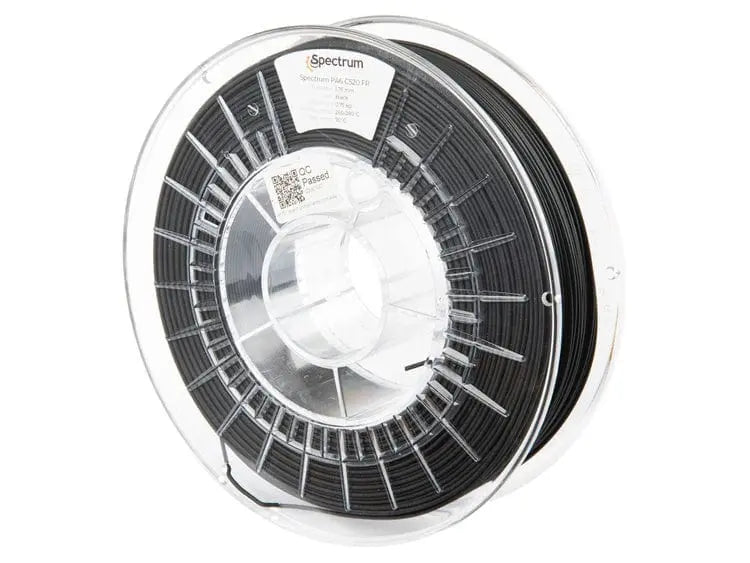

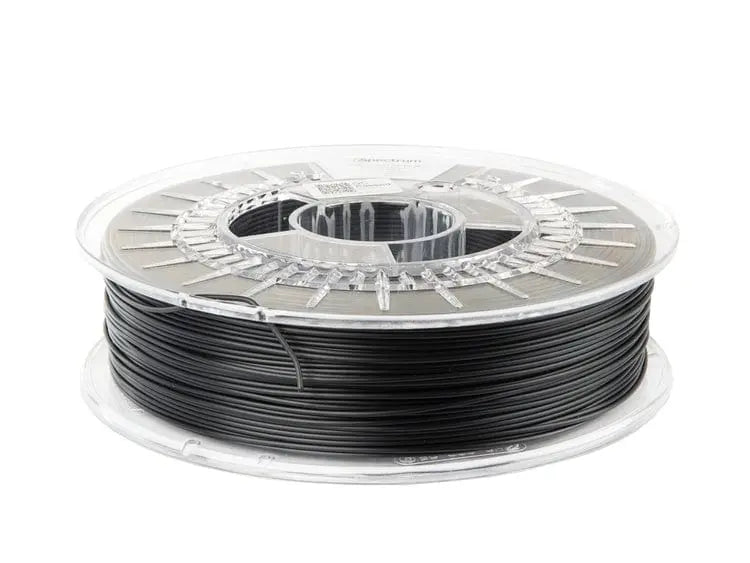

Black - 1.75mm Spectrum PA6 CS20 Filament - 0.75 kg
