Filament Spectrum r-PLA

Environmentally-friendly 3D printing

Spectrum r-PLA is an environmentally-friendly 3D printing material that fits into a sustainability initiative. The filament is created by reusing the recycled extrusion residual waste stream. The raw material is collected, shredded, re-mixed and homogenised into a high-grade and easy-to-print recycled PLA filament with much less environmental impact. Spectrum r-PLA retains the properties of classic PLA, which is simplicity and printing efficiency, to combine them with very low shrinkage and relatively high tensile strength. To make 3D printing more sustainable, Spectrum r-PLA is wound on a cardboard, environmentally-friendly spool.

Note: As it is a fully recycled material, Spectrum r-PLA may not be available or there may be longer delivery lead times due to limited raw material availability.

Key features:

• manufactured from recycled materials
• lower environmental impact by reusing waste
• environmentally-friendly, cardboard spool
• easy printing, similar to normal PLA
• no shrinkage after cooling
• heat deflection temperature - 55°C

Applications:

• educational projects
• prototyping
• visualisation of finished and semi-finished products
• industrial design,
• interior design
• conceptual models

Packaging

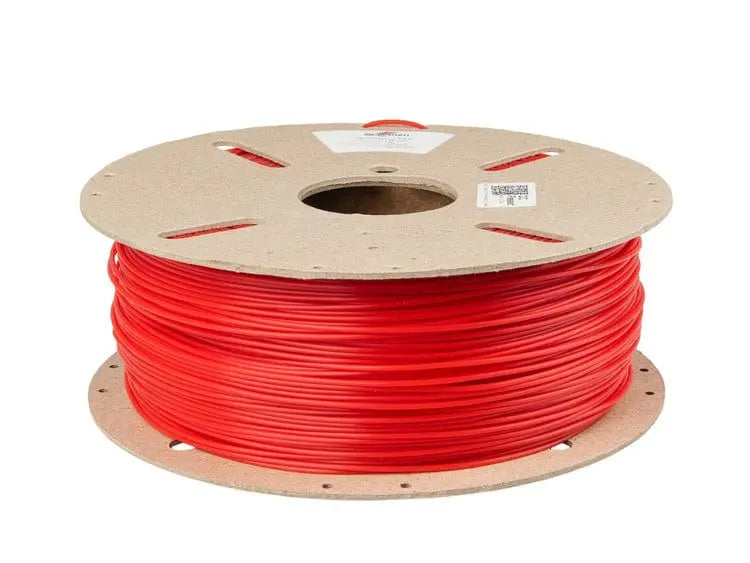

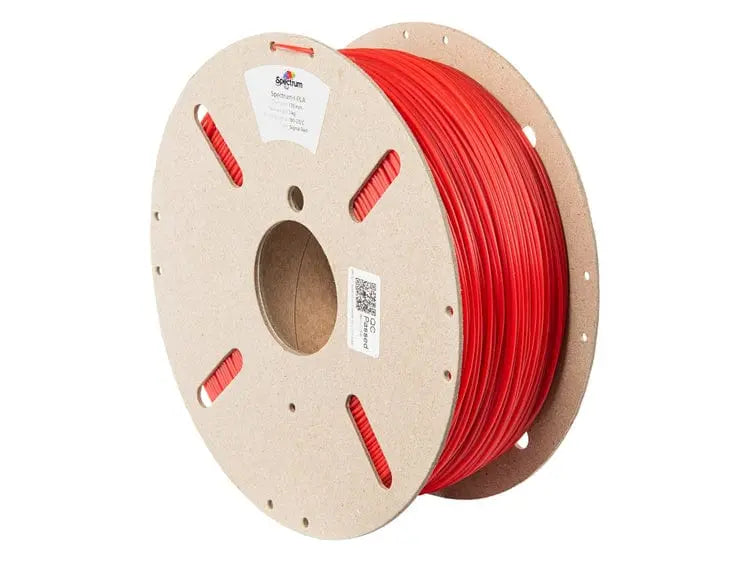

Filament wound on an environmentally-friendly cardboard spool. The spool contains information on the type of material, diameter, colour and recommended printing temperature. Each spool is vacuum packed with moisture absorber. All in an original Spectrum Filaments box.

VERIFY YOUR SPOOL – the most precise quality

Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly significant impact of process parameters on product dimensions and material homogenization.

During the production each 1mm of Spectrum Filament is being continuously measured in 2 axes with ±0.8µm accuracy, which allow obtaining a high-quality final product. To prove this, Spectrum Filaments, as one of the few manufacturers in the world, has introduced the possibility of online presentation, individually for each manufactured spool:

• the course of diameter on the entire length of the spool,
• mean diameter,
• ovality,
• standard deviation.

Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.

General information
Color Red
Spectrum color name Signal Red
Diameter 1.75mm
Dimensional tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool YES
Density 1.24 g/cm³
Net weight 1000g
Total weight 1200g
Recommended print settings
Printing temperature 190-215°C
Heated bed necessary
Heated bed temperature 40-50°C
Printing speed 30-90mm/s
Closed chamber Not necessary
Dimensions of the spool
Outer diameter 200mm
Width 67mm
Inner diameter 52mm
Empty spool weight ± 140g
