Filament Spectrum PLA Thermoactive





Color changing ability

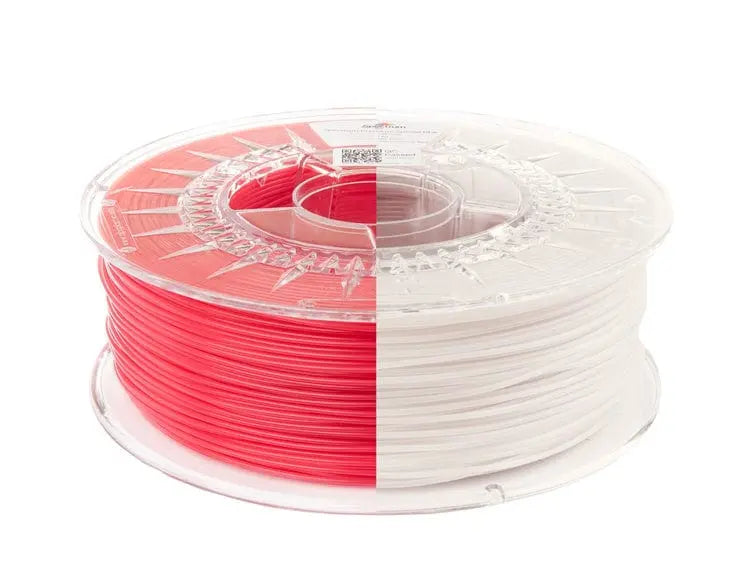

Spectrum PLA Thermoactive is a filament based on pure PLA blended with a thermochromic pigment. Due to this extremely original addition, additive manufactured items change their colour according to the temperature. The colour changes from red to cream once the surface temperature of the item exceeds 30°C. The previous colour is restored gradually once the item reaches its initial temperature.



Key features:



• color changing ability at ca. 30°C
• warp-free printing
• excellent layer lamination
• high aesthetic surface quality
• no shrinkage after cooling



Applications:



• the effects are visible with the naked eye
• educational projects
• temperature sensors
• coating for hot beverage mugs
• coating for kettles and thermostats for other electronic devices



Packaging

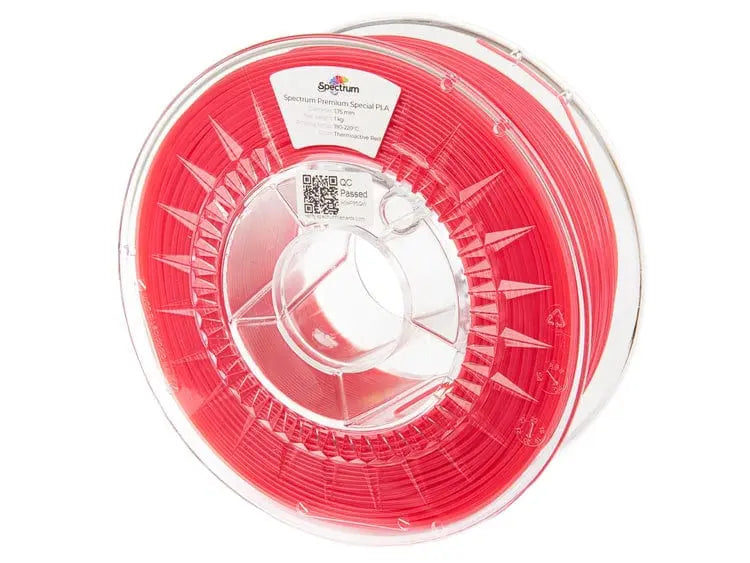

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.



VERIFY YOUR SPOOL

– the most precise quality control system on the market



Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly large impact of process parameters on product dimensions and material homogenization.

During the production each 1mm of Spectrum Filament is being continuously measured in 2 axis with ±0.8µm accuracy, what allows to obtain a high-quality final product. As a proof of this, Spectrum Filaments has introduced, as one of the few manufacturers in the world, the possibility of presenting online, individually for each manufactured spool:

• the course of diameter on the entire length of the spool,
• mean diameter,
• ovality,
• standard deviation.

Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.





General information
Color Red
Spectrum color name Thermoactive Red
Diameter 1.75mm
Dimensional tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool YES
Density 1.24 g/cm³
Net weight 1000g
Total weight 1400g
Recommended print settings
Printing temperature 190-220°C
Heated bed necessary
Heated bed temperature 0-45°C
Printing speed 40-110mm/s
Closed chamber Not necessary
Dimensions of the spool
Outer diameter 200mm
Width 67mm
Inner diameter 52mm
Empty spool weight ± 250g
