Strong and abrasion-resistant
Spectrum PA6 Low Warp™ is an extremely strong construction material based on polycaprolactam enhanced with additives that reduce the high shrinkage typical of processing such materials. The most important characteristics of Spectrum PA6 Low Warp™ filament include, among others: resistance to fuels and oils, high impact resistance, and excellent mechanical properties.
The improved cohesion of the Spectrum PA6 Low Warp™ material makes it possible to significantly reduce the “curling” effect (especially at the corners of the printed model). The reduction of this negative effect is related to the low processing shrinkage of 0.3%.
Additives used in the production of Spectrum PA6 Low Warp™ make it a self-lubricating material, so it is possible to use the parts produced in applications where friction occurs. In addition, the molded parts will have good electrical insulation properties and also show physiological indifference.
In order to obtain the interesting properties of Spectrum PA6 Low Warp™, as far as technical aspects are concerned, the basic storage rules for these materials must be followed (in a dry and dark place with humidity less than 15%). To obtain the best parameters of the printed object, it is recommended to dry the material before processing.
Technical data
- Material:
- PA6
- Available diameter:
- 1.75 / 2.85 [mm]
- Diameter tolerance:
- +/- 0.03 [mm]
- Density:
- 1.15 [g/cm3]
- Thermal resistance:
- HDT B - 60°C
- Surface finish:
- shiny
- Verify your spool:
- YES (course of diameter online graph - on the entire length of the spool, mean diameter, ovality, standard deviation individually for each manufactured spool)
How to use
- Nozzle temperature:
- 250-280°C
- Bed temperature:
- 85-100°C
- Recommended printing speed:
- 30-70 mm/s
- Recommended shell thickness:
- 0.40 - 2.70mm
- Recommended layer height:
- ≥ 0.15mm
- Cooling:
- 0-30%
- Closed chamber for printing:
- recommended
- Dry box recommended:
- yes
- Ruby or hardened nozzle recommended:
- no
- Adhesive:
- not necessary (for increased adhesion or to prevent warping: Magigoo PA)
Material characteristics
- low shrinkage
- high mechanical strength
- chemical resistance to lubricants and oils
- wide variety of applications
- very high adhesion between layers, which minimizes the risk of delamination
Applications
- Slide bearings, scrapers, guide rollers operating at elevated temperatures
- rings and seal plates with enhanced chemical and corrosion resistance
- end-use parts
- tools
- functional prototyping

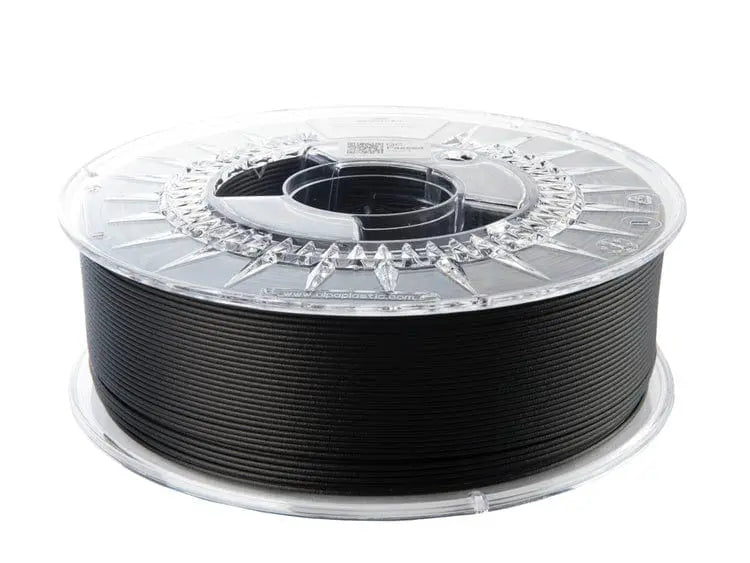

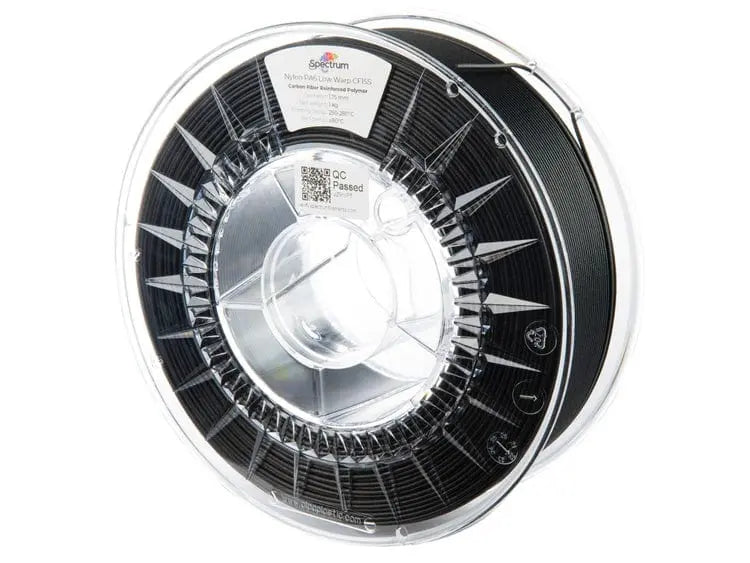

Black - Spectrum Nylon PA6 Low Warp CF15 Filament - 1.75mm, 1kg
