Filament Spectrum PET-G FX120

Dimensional stability and high temperature resistance

Spectrum PET-G FX 120 is a flexible material, designed especially for engineering applications requiring both the durability of an engineering-class polymer and strength, enabling designers to create rapidly truly functional parts to withstand normal use.

Parts made of Spectrum PET-G FX120 filament exhibit high chemical resistance, temperature resistance, and can be steam sterilized. The material is adapted to the use of a high level of cooling rate, which makes it possible to obtain a very high-quality surface and a significant reduction of filament stringing. Spectrum PET-G FX120 can be printed with increased operating speeds, as compared to other elastomers.

Spectrum PET-G FX120 belongs to the group of rigid elastomers. As a result, it can be effectively used on devices with a Bowden filament feeding mechanism, as well as in more and more popular multi-material printers – then it can be perfectly combined with the classic PET-G filament. The additives used in the development of this material significantly increased the maximum operating temperature – even up to 120 ° C.

Tip: It is recommended to print using a heated chamber.

Key features:

• high temperature resistance (120°C)
• high dimensional stability
• high mechanical strenght
• excellent toughness
• chemical resistance
• styrene-free
• FDA compliance
• clarity and gloss
• low odor

Applications:

• visual and functional prototyping
• tooling
• end-use parts
• product testing
• manufacturing aids

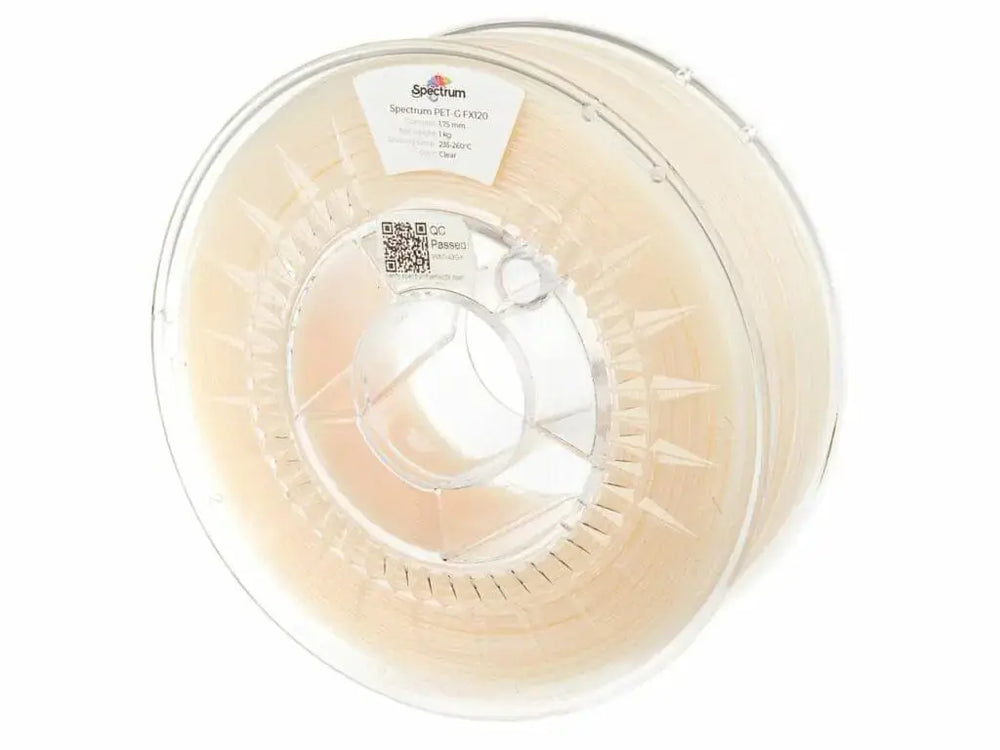

Packaging

Filament is reeled on the neat, transparent spool. Each spool contains information on the type of material, diameter and recommended printing temperature. Filament is vacuum-packed with a moisture absorber. Whole product packed in the original, folied Spectrum Filaments packaging.

VERIFY YOUR SPOOL

Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly large impact of process parameters on product dimensions and material homogenization.

During the production each 1mm of Spectrum Filament is being continuously measured in 2 axis with ±0.8µm accuracy, what allows to obtain a high-quality final product. As a proof of this, Spectrum Filaments has introduced, as one of the few manufacturers in the world, the possibility of presenting online, individually for each manufactured spool:

• the course of diameter on the entire length of the spool,
• mean diameter,
• ovality,
• standard deviation.

Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.

General information
Color Transparent
Spectrum color name Clear
Diameter 1.75mm
Dimensional tolerance ± 0.05mm
Verify your spool - preview of the diameter course on the entire length of the spool YES
Density 1.18 g/cm³
Net weight 500g
Total weight 900g
Recommended print settings
Printing temperature 250-280°C
Heated bed necessary
Heated bed temperature 100-110°C
Printing speed 40-100mm/s
Closed chamber Recommended for larger prints
Dimensions of the spool
Outer diameter 200mm
Width 55mm
Inner diameter 52mm
Empty spool weight ± 220g
