What the ANTCLABS BLTouch Extension Cable SM-XD-1500 Does

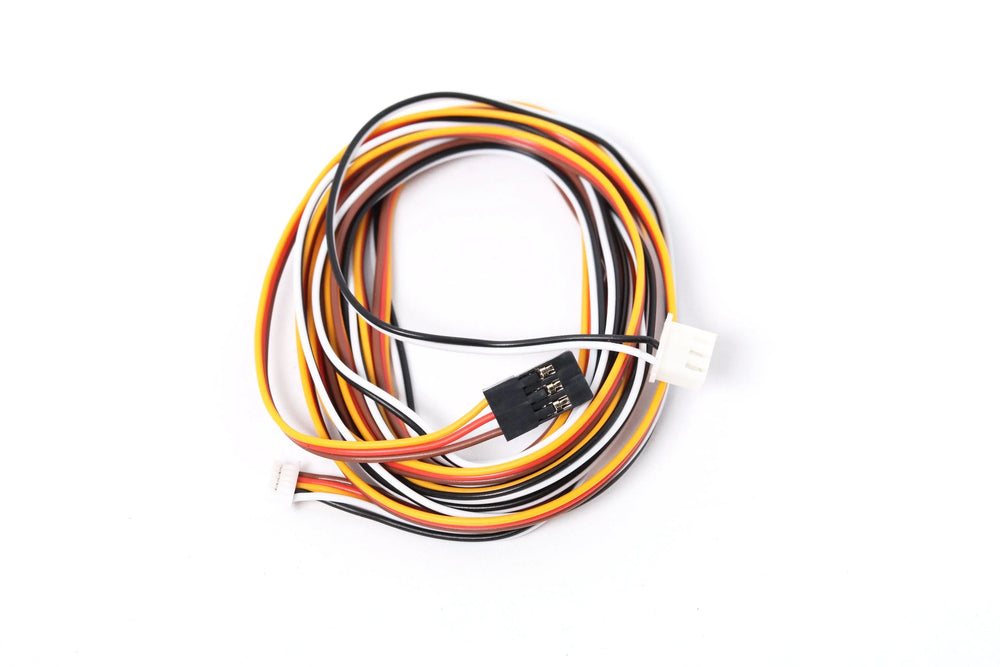

The ANTCLABS BLTouch Extension Cable SM-XD-1500 is a 1.5-metre extension cable made to increase the reach of a BLTouch auto bed levelling sensor in a 3D printer. The added cable length makes flexible sensor placement easier across a wider range of printer configurations.
This extended connection supports cleaner routing between the BLTouch sensor and the printer controller, helping users set up auto bed levelling in layouts where the standard cable length may be limiting.
Key Features and Benefits
- 1.5-metre cable length: Provides 1500 mm of extra reach for diverse printer setups and sensor mounting positions.
- XH connectors: Uses XH connectors for a secure and compatible connection with BLTouch sensors.
- Oxygen-free copper construction: Maximises conductivity and supports reliable signal transmission.
- Shielded design: Helps minimise electromagnetic interference to maintain a stable connection between the BLTouch sensor and the printer controller.
- Straightforward installation: The user-friendly design allows simple connection to the BLTouch sensor and 3D printer controller.
How the Extension Cable Improves BLTouch Installation
Installation is direct: connect the extension cable between the BLTouch sensor and the 3D printer controller to extend the sensor's reach. This added flexibility can improve cable management and make it easier to fit the sensor into custom or space-constrained printer builds.
By supporting a stable and reliable sensor connection, the ANTCLABS cable helps improve the accuracy and consistency of auto bed levelling, which contributes to more consistent 3D printing results and better overall print quality.
Use Cases for 3D Printer BLTouch Cable Extensions
- Custom printer configurations: Useful when the BLTouch sensor is mounted farther from the controller than a standard cable can easily accommodate.
- Sensor relocation projects: Helps when adjusting sensor placement to suit frame modifications or alternate carriage designs.
- Cleaner internal cable routing: Extra length can make it easier to route wiring more neatly through larger or more complex printer layouts.
- Stable auto bed levelling connections: Shielding and oxygen-free copper construction support dependable communication between the sensor and controller for precise levelling performance.
Technical specifications
| Length | 1.5 metres (1500 mm) |
| Connector Type | XH connectors |
| Conductor Material | Oxygen-free copper |
| Design | Shielded |
