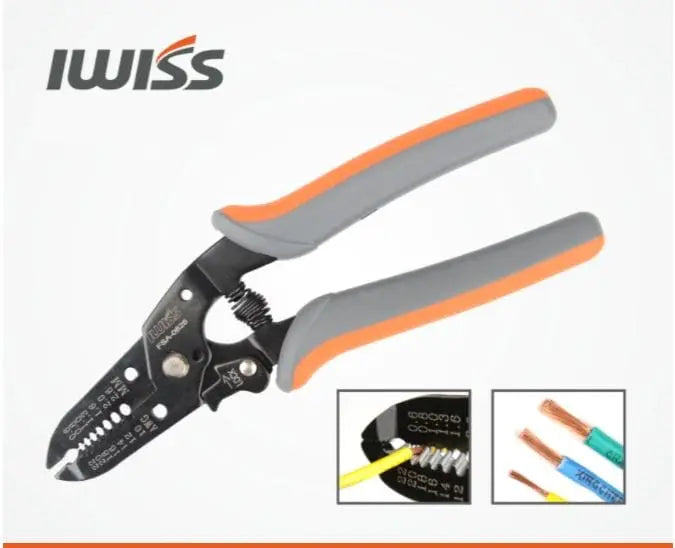

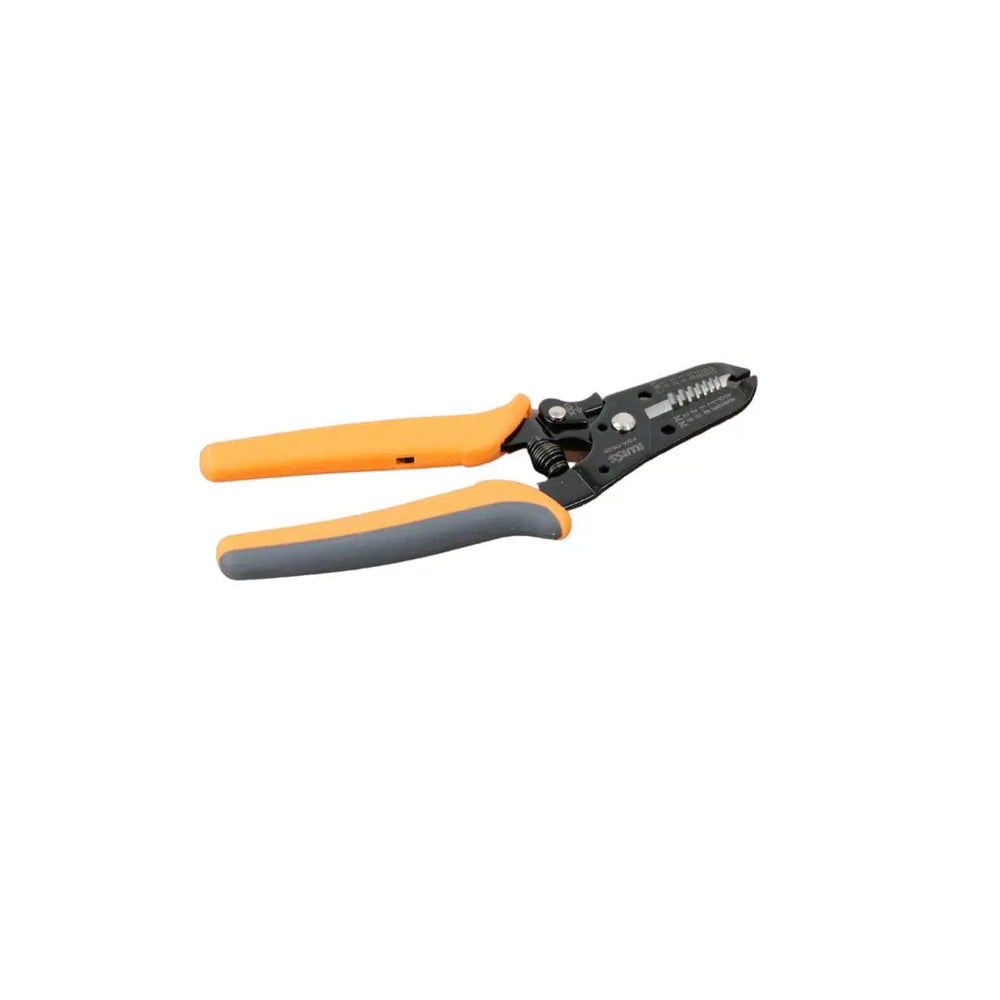

iWiss FSA-0626 Wire Strippers

IWISS Wire Stripper Φ0.6-2.6mm (20-10AMG) Single Wire Stranded Wire FSA-0626

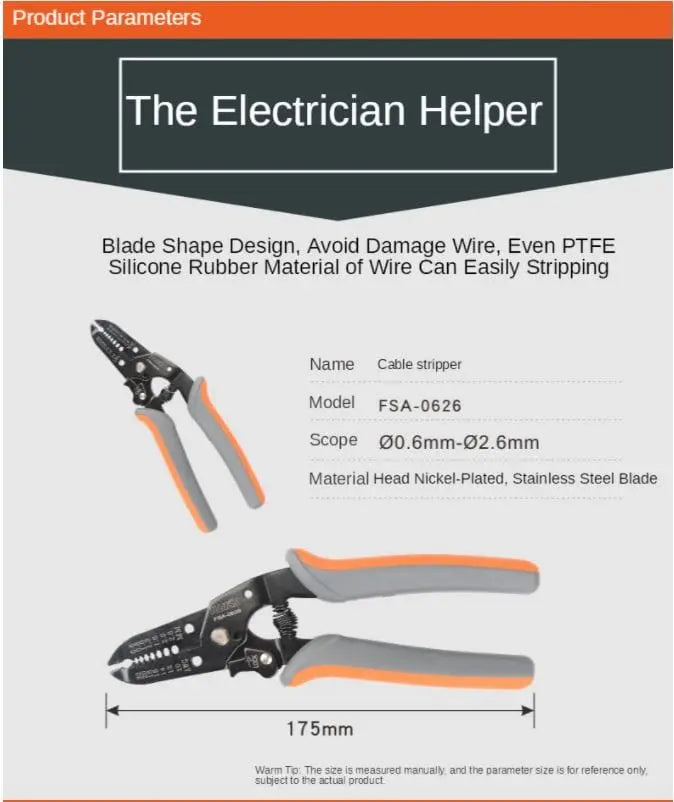

• Full length: 164mm; weight: 48g

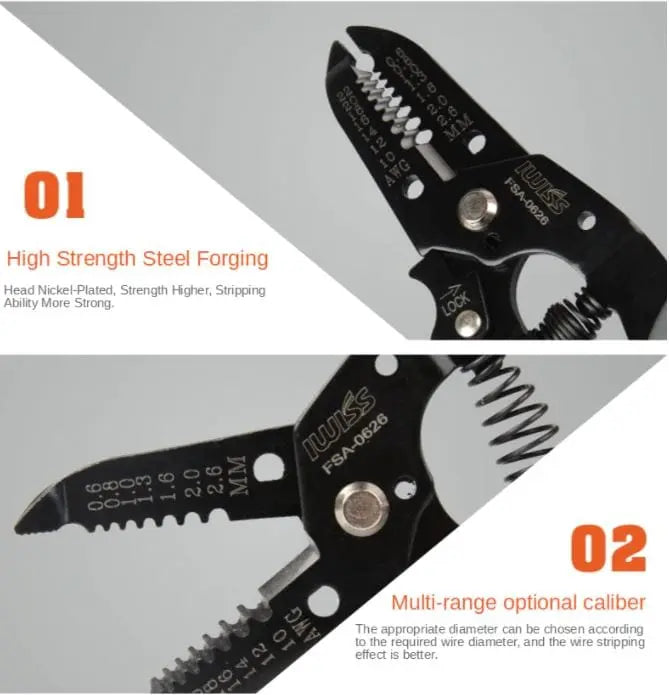

• Each hole diameter: 0.6mm, 0.8mm, 1.0mm, 1.3mm, 1.6mm, 2.0mm, 2.6mm
• Reference applicable wire AWG: 22, 20, 18, 16, 14, 12, 10
• Refer to applicable wire AWG: 22 ～ 24、20 ～ 22、20、18、16、14、12
• Reference applicable wire conductor cross-sectional area: 0.2mm², 0.3mm ², 0.5mm ², 0.75mm ², 1.25mm², 2.0mm², 3.5mm²

Features:

• FSA-0626 Cable Wire Stripping Tools
• For cutting wire, 30mm max. Stripping wire 0.9-6.0 mm2
• Automatic rebound spring
• No damaging of the conductor core
• Length: 165mm

Product Description

• Shear-type wire cutter
• Wire Looping & Bending holes
• Self-opening, spring-loaded hinge with safety lock
• Strips solid and stranded wire sizes 10-22 AWG
• Ergonomic single curve handle design for more comfortable grip and better leverage
• Cutting Capacity: ≤25mm2
• Stripping Capacity: 0.9-6.0mm2
• Weight: 0.4kg

Package Includes:

1* FSA-0626 crimping tool
