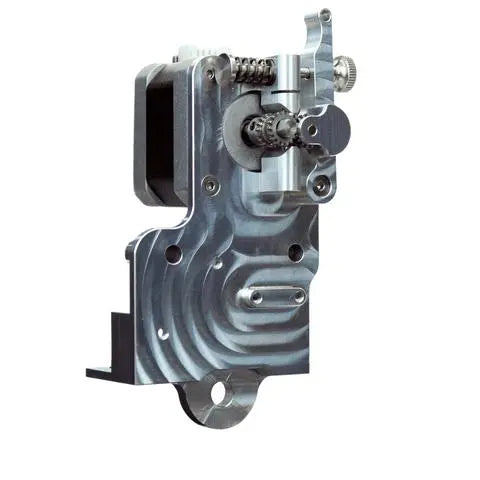

Micro Swiss Direct Drive Extruder is a drop-in system for CR10 / Ender Printers

No modification required, simple plug and play
No printed brackets or sandwiches

Features:

Dual-drive train
Hardened tool steel, CNC precision cut gears
Adjustable filament grip
Easy filament loading
Short, highly constrained filament path
Prints flexible filaments with high speed and accuracy
Outstanding extrusion control
Lightweight aluminum body

Fits:

CR-10 (Will NOT directly fit CR-10 V2, V3)
CR-10-S5
CR-10-S4
CR-10S
CR-10S Pro V1 *Fits with printable Fan Shroud
CR-10S Pro V2 *Fits with printable Fan Shroud
CR-10 Max *Fits with printable Fan Shroud
CR-10 MINI
CR-20
CR-20 Pro
Ender 2
Ender 3
Ender 3 Max *Fits with printable Fan Shroud And PTFE bracket
Ender 3 Pro
Ender 3 V2 *Fits with printable Fan Shroud (Installation Instructions Video by My Tech Fun for Ender 3V2)

Contents:

1 x Main Extruder body
1 x Extruder Lever
1 x Spring Pin
1 x Spring
2 x Gears
1 x Knob
1 x Shoulder Pin
2 x M5 20mm Nylon Patch Bolts
1 x M5 30 Bolts
1 x M5 Nylon Lock Nut
1 x M5 Washer
1 x Extension Cable
3 x M3 Motor Mounting Screws
2 x M3 Bolts
2 x M3 Nuts
5 x Zip Ties
1 x Printed Bracket
1 x Beveled Capricorn Liner
Stepper motor and roller wheels are not included

Disclaimer:

We notice a recent extruder stepper motor update on Creality machines. Before ordering this kit, please check your extruder stepper motor. If your extruder motor gear is pressed in, you will need to purchase a new stepper motor to be able to complete the installation.

Reminder:

When you installed the Micro Swiss direct Drive, did you change "Retraction Distance" in your Slicer?

For Ender 3 series should be 1.5-2mm @ 50mm/s

For Cr-10 Series should be 2.0-2.5mm @ 50mm/s

Don't exceed 3.0mm distance. If retractions is still 5.0 - 6.5mm it will pull hot filament up into heat break and harden there when it hits the cold side and jam up!

Aaron D.

Great product if you want to spend days getting it to work. The fan mount that MicroSwiss recommends you use with this is garbage and I had to duct tape the fans to it as there were no screw mounts for it. Had to try to make one myself, only slightly better results. Then you have to reprogram the firmware, which is beyond my scope of training, and didn't know going into this. To fix that, I made shims to tape on the unit to work better. Overall poorly executed setup.

Leslie W.

Installation was easy. It took a little to fine tune it, but works great!!

Daniel D.

Great stuff !

Murray C.

I am very impressed with the Micro Swiss Direct Drive Extruder on my Ender 3 Printer. I have been using the Micro Swiss all metal hot end for several months now with no problems at all. Now after installing the micro Swiss Hot End and the Extruder together on my Ender 3 and I have seen a great improvement in the 3D models I print. The only change I made to the settings in Cura was I changed the retraction distance down to 1.25mm. As I said before I'm very impressed with my purchase of the Micro Swiss Hot End and Direct Drive Extruder.

eddy c.

Micro Swiss Direct Drive Extruder Is the best way to go 10 X better than the Ender 3 stock extruder, This combined with an all metal hot end Is a massive upgrade for your 3d printer.

Ian g.

It was super easy to install. Light weight and prints flexible filament with ease.

James H.

Best direct drive option for the ender 3 on the market. No shims, great dual gear extruder included and very easy filament loading. Stepper extension cable could be of better quality but that is splitting hairs. There is a hero me remix for it and a great extruder knob on the verse.

Joe T.

I wanted to give back to the PSWs that take care of Grandma and heard about the Ear Savers which they could use. It is preferable to print in a soft bendable plastic and PTU seemed to be the best choice. So I invested in the Swiss-Micro Direct Drive print head system. It is beautifully machined and relatively easy to install. I did tests on PLA and the results were beautiful. Then came the tests with TPU. This is a very unforgiving medium and requires everything to be perfect to print well. Learned a lot by trial and error and don't think it would have worked cleanly without this direct drive head and the wonderful help of 3DPrintingCanada. I highly recommend both. The one suggestion I can give is that the small piece of PTF tube that you need to use, must be seated perfectly into the inside collar near the nozzle then slide the heat sync module up into the direct drive trimming the tube slightly to fit up almost against the feed gear and then, once the heatsync is locked down and in place, then cut the tube to exact fit. It needs to be very close to the gear and the.path has to be very straight with no chance of kinks or binding. Also slightly chamfer the tube to make loading easier.

James H.

Everything about this conversion screams quality. Solid cnc machined aluminum mount, quality fasteners, you name it. No 3d printed shims here. Sure it is a bit pricey, but trust in Micro Swiss. It is worth every penny. If you do not already have a Micro Swiss hot end, get the combo package it is a great deal!

Brand: Micro Swiss / 9 Reviews

Micro Swiss Direct Drive Extruder for Creality CR-10 / Ender 3 Printers (Extruder Only)

Name: Micro Swiss Direct Drive Extruder for Creality CR-10 / Ender 3 Printers (Extruder Only)
Brand: Micro Swiss
SKU: M2602
Price: 68.0 USD
Availability: InStock
Rating: 4.7 (9 reviews)
