What the E3D Titan Aero full kit does
The E3D Titan Aero integrates the Titan extruder and V6 hotend into one compact assembly to deliver lightweight direct-drive performance, reliable extrusion, and easier installation on a wide range of 3D printers.

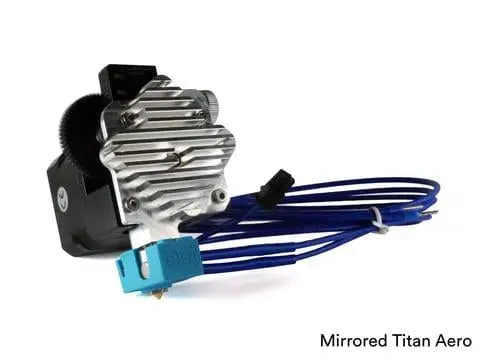

This mirrored 1.75mm 24V Full Aero Kit combines the proven usability of the Titan extruder with the all-metal E3D V6 design. The result is a neat, rigid setup that supports accurate extrusion, flexible filament handling, and modular E3D component swaps.
Key features of the Titan Aero mirrored hotend and extruder
Compact integrated design for more usable build height
By combining the hotend and extruder into one package, Titan Aero is ultra compact. That integrated layout gives an extra 25mm of Z-axis build height compared to a separate V6 + Titan combo.
A shorter, more unified toolhead also improves rigidity. The Titan Aero copes well with knocks and bumps, which makes it suitable for fast-moving 3D printer carriages.
Accurate filament control with better flexible performance
A short, well-constrained filament path improves extrusion control. The reduced path length minimises spaces where filament can bend, buckle, or jam.
That design makes the Titan Aero especially well suited to flexible materials, where unsupported filament paths often create feeding problems.
All-metal V6 hotend architecture
The hotend is based on the E3D V6 all-metal design. This construction allows reliable printing with thermoplastics at temperatures up to 285°C.
The Titan Aero also accepts standard V6 heatbreaks, making it part of E3D’s broader modular ecosystem. Users can interchange compatible components such as temperature sensors, heater cartridges, Volcano parts, and one of the 92+ nozzle options offered by E3D.
Easy installation and day-to-day use
The standard mounting hole pattern helps the Titan Aero fit a wide range of 3D printers and simplifies the design of custom mounts. The integrated format also reduces carriage complexity compared with separate hotend and extruder setups.
Titan’s custom engineering and rigorously tested extrusion mechanism carry over into the Aero platform. Loading and unloading filament, manually extruding, adjusting idler tension, and clearing debris from the hobb are all designed to be straightforward.

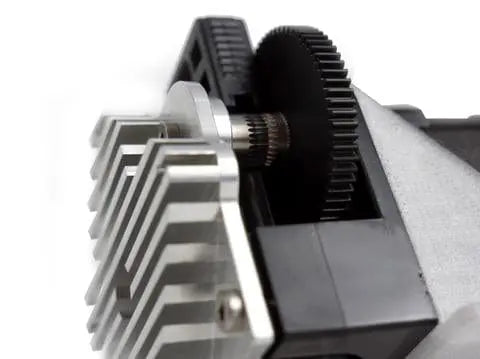

Lightweight drive system with 3:1 gearing
Titan’s 3:1 gear reduction allows the use of smaller motors while maintaining pushing power and extrusion reliability. That gearing helps reduce carriage weight without giving up the control expected from a direct-drive setup.
This full kit includes the E3D “Compact but Powerful” stepper motor, specified here as a Nema17 42-40mm C.B.P. motor.
What is included in the full Aero kit
- Nema17 42-40mm C.B.P. Motor
- E3D Titan Gear reduction Extruder
- Mirrored Aero Heat Shroud with integrated heatsink
- 40x40x10 Heatsink fan with mounting screws
- Mounting hardware
- All metal heat brake
- E3D V6 heat block 23mm
- E3D silicone sock, 23mm
- PT100 Sensor
- PT100 extension Wire
- 30Watt heater with pre-terminated ferrule ends
- Stepper motor extension wire 6pin Stepper to 4 pin DuPont 2mm
- "traffic Cone" filament Guides 1.75mm (some with 2.85)
Newer models do not come with the Nema17 to 2040 aluminium extrusion bracket.
Where the Titan Aero is useful

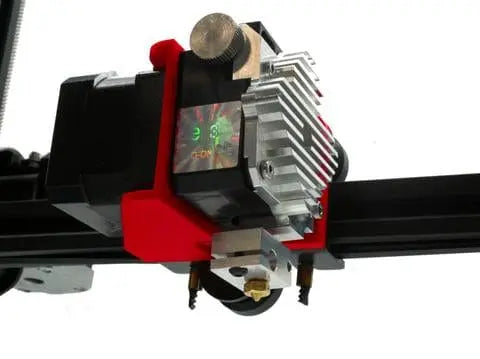

Direct-drive upgrades for compact printer carriages
The integrated Aero format is useful when a printer needs direct-drive extrusion without a bulky separate hotend and extruder arrangement. The extra 25mm of Z-height can also matter on printers with limited vertical travel.
Flexible filament printing on desktop FDM machines
The constrained filament path is beneficial for TPU and other flexible materials. Users looking for an E3D Titan Aero for flexible filament printing typically choose it to reduce buckling and improve feed consistency.
Custom printer builds using E3D modular parts
Because the Titan Aero uses standard V6 heatbreaks and works within the E3D ecosystem, it suits builders who want to mix and match heatbreaks, sensors, heaters, Volcano upgrades, or different nozzle types.
Fast-moving toolheads that need rigidity
The compact and rigid assembly is suitable for printers that experience rapid carriage movement or regular handling. A more unified hotend and extruder arrangement can better tolerate bumps and motion than a larger multi-part setup.
Assembly and reference information
The existing product information includes an E3D assembly guide reference for Titan Aero assembly. It also includes additional reference links for a bracket model and video resources:
https://e3d-online.dozuki.com/Guide/Titan+Aero+Assembly/23
https://www.thingiverse.com/thing:2756792
https://www.youtube.com/watch?v=Qg6KsQH2pC8
https://www.youtube.com/watch?v=WzaP-ynI-Oo
MFG Part #: TITAN-AERO-**-175-24V-+BR-+MTR
Technical specifications
| Brand | E3D |
| Filament diameter | 1.75mm |
| Voltage | 24V |
| Maximum temperature | Up to 285°C |
| Motor | Nema17 42-40mm C.B.P. Motor |
| Extruder | E3D Titan Gear reduction Extruder |
| Shroud | Mirrored Aero Heat Shroud with integrated heatsink |
| Heatsink fan | 40x40x10 fan with mounting screws |
| Heatbreak | All metal heat brake |
| Heat block | E3D V6 heat block 23mm |
| Silicone sock | E3D silicone sock, 23mm |
| Temperature sensor | PT100 Sensor |
| PT100 wiring | PT100 extension Wire |
| Heater | 30Watt heater with pre-terminated Ferrule ends |
| Stepper extension | 6pin Stepper to 4 pin DuPont 2mm |
| Filament guides | "traffic Cone" filament Guides 1.75mm (some with 2.85) |
| MFG Part # | TITAN-AERO-**-175-24V-+BR-+MTR |
