What the OpenBuilds V-Slot Gantry Plate for 2020 Extrusion Does

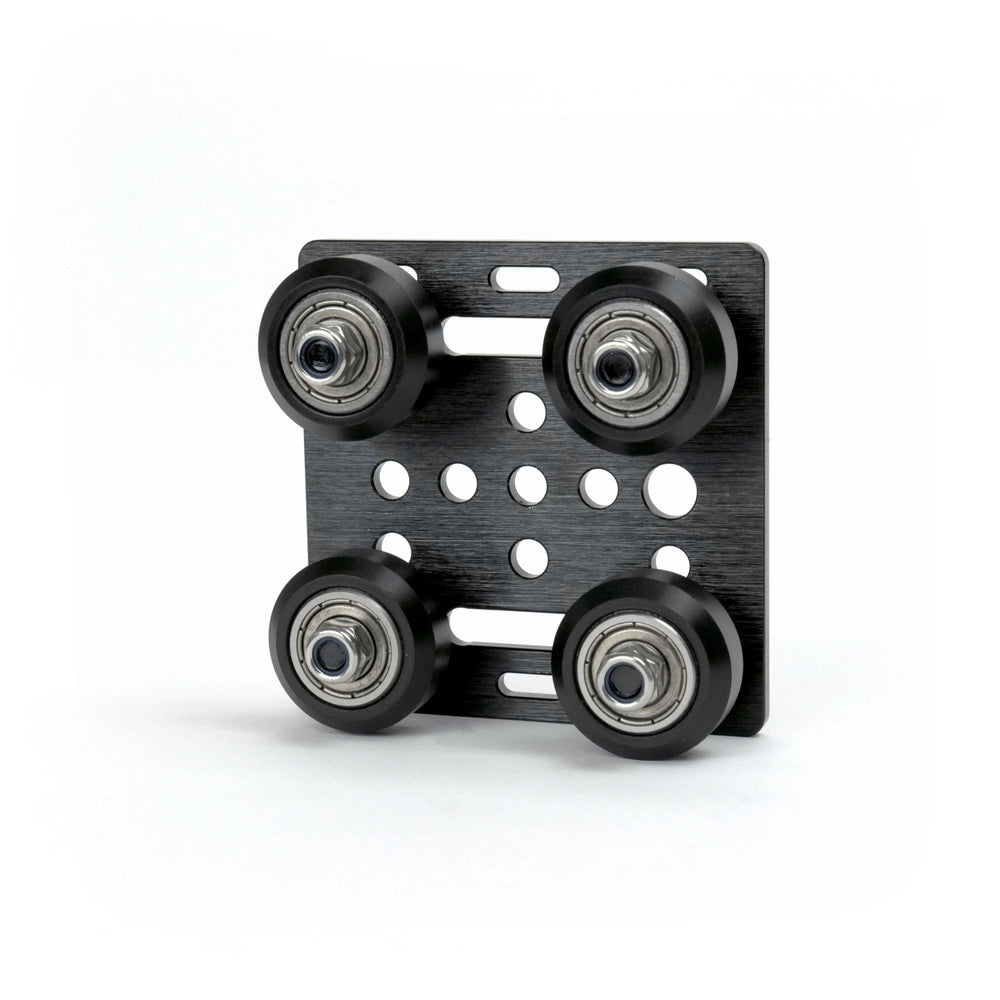

The OpenBuilds V-Slot Gantry Plate for 2020 Extrusion with 24mm POM V Wheels is a precision-machined motion system built for smooth, stable linear movement. The gantry assembly runs along V-Slot 2020 extrusion and is designed for accurate travel in 3D printers, CNC machines, laser engravers, and other automated systems.

This gantry plate combines a rigid aluminium structure with low-friction wheel motion to support reliable movement in compact mechanical builds. The result is smooth travel, consistent positioning, and modular integration across a wide range of machine designs.

Key Features of the 2020 V-Slot Gantry Plate

• 6061-T6 aluminum plate: The gantry plate is made from high-strength 6061-T6 aluminum for durability and rigidity in motion applications.
• Black anodized finish: The anodized surface adds corrosion resistance and provides a clean, professional appearance.
• Pre-assembled 24mm POM V-wheels: Precision-moulded Delrin (POM) wheels are included for smooth, quiet movement on V-Slot rails.
• Optimized hole pattern: The plate supports a variety of mounting configurations for modular compatibility in custom machine builds.
• Adjustable eccentric spacers: Eccentric spacers allow fine-tuning of wheel tension for proper contact on V-Slot rails.
• Compact and lightweight format: The assembly is well suited to small-to-medium-sized linear motion setups where efficient packaging matters.

Benefits for Linear Motion Systems

Smooth and stable motion is the main advantage of this OpenBuilds gantry plate. The combination of precision-machined construction and 24mm POM V-wheels helps reduce friction while maintaining controlled travel along 2020 V-Slot extrusion.

Modular mounting flexibility is another practical benefit. The hole pattern supports different configurations, making the plate easier to integrate into custom frames, moving carriages, and machine axes.

Use Cases for 2020 Extrusion Gantry Plate Assemblies

3D printers and CNC machines

The gantry plate supports precise and smooth linear motion for moving parts, making it suitable for axis assemblies and carriage systems in desktop fabrication equipment.

Laser and engraving systems

Stable motion control makes the assembly useful for cutting and engraving tasks where predictable carriage travel is important.

Automation and robotics

Accurate positioning and modular compatibility make the OpenBuilds gantry plate a practical choice for motion systems in robotics and automated equipment.

Where This Gantry Plate Fits Best

This OpenBuilds V-Slot Gantry Plate with POM V-Wheels is an essential component for precision linear motion in mechanical and automation projects. It is especially useful in builds that need reliability, smooth operation, and modular versatility without moving to a larger rail format.
