FreeScan Combo Series
Multifunctional Metrology Laser 3D Scanner
- Blue laser & Infrared light
- Accuracy of 0.02 mm
- Powerful and Ergonomic
- Reddot Winner 2024
- Verified Accuracy (VDI/VDE 2634 & ISO 10360)
Compact and Powerful Metrology
Packs dual light sources in an ultra-compact shell, measuring just 193 x 63 x 53 mm. It's equipped with both blue laser and infrared VCSEL technology and weighs only 620g.
Certified Metrology Accuracy
Versatile Dual Light Scanning
An innovative combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios.
Multiple Scanning Modes
Up to 50 laser lines to scan large objects quickly, 7 parallel laser lines to scan fine details, and a single laser line for deep hole and pocket area scanning.
Lightweight and Compact
The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.
Blue Laser & Infrared Light
An innovative combination of blue laser and infrared light ensures accurate results in various scenarios, improving both efficiency and quality.

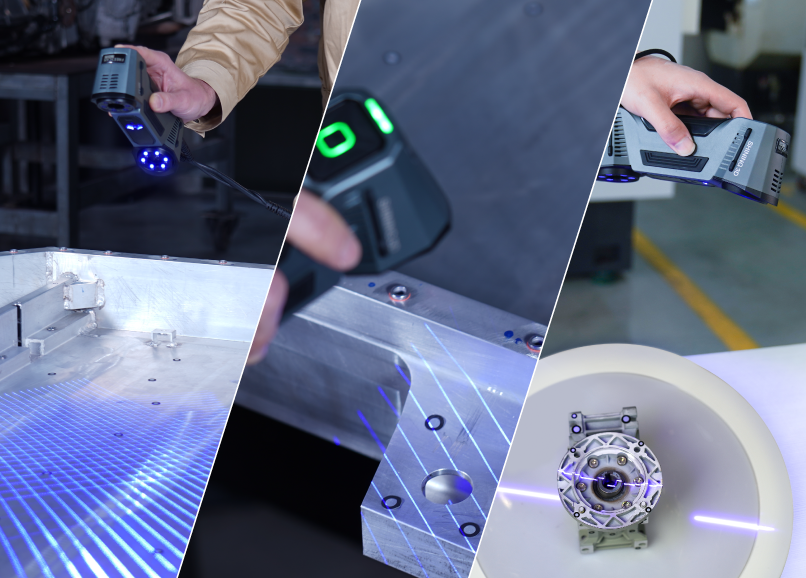

Four 3D Scanning Modes to Cover All Types of Workpieces
- Multiple-line mode with 26 (FreeScan Combo) or 50 (FreeScan Combo+) Â laser lines for overall scans
- Fine scanning mode with 7 parallel laser lines to acquire intricate details
- Deep hole scanning mode with 1 single laser line
- Infrared light mode for quick scans without markers

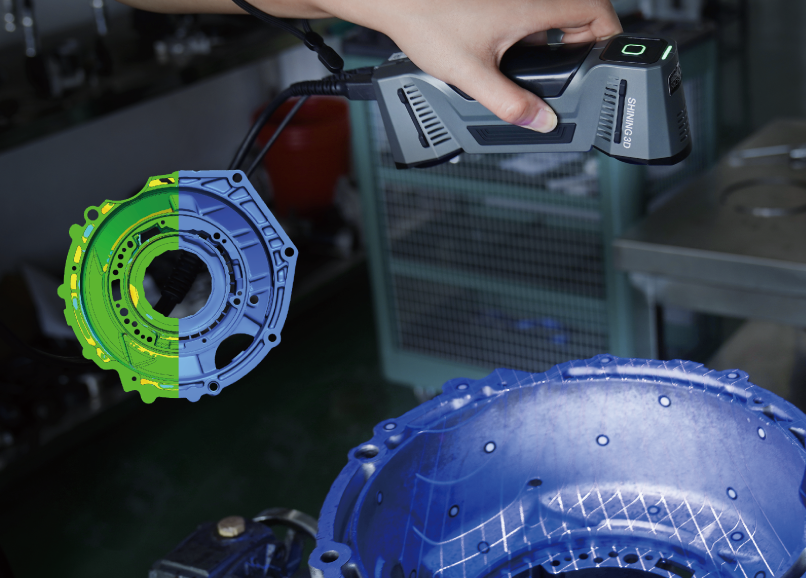

A Wise Choice for Metrology
The FreeScan Combo Series' laser scanning modes can achieve industrial-grade accuracy of 0.02 mm*, making it ideal for metrology applications.
*Based on VDI/VDE 2634 and ISO 10360, sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab certified with ISO/IEC 17025 under environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.

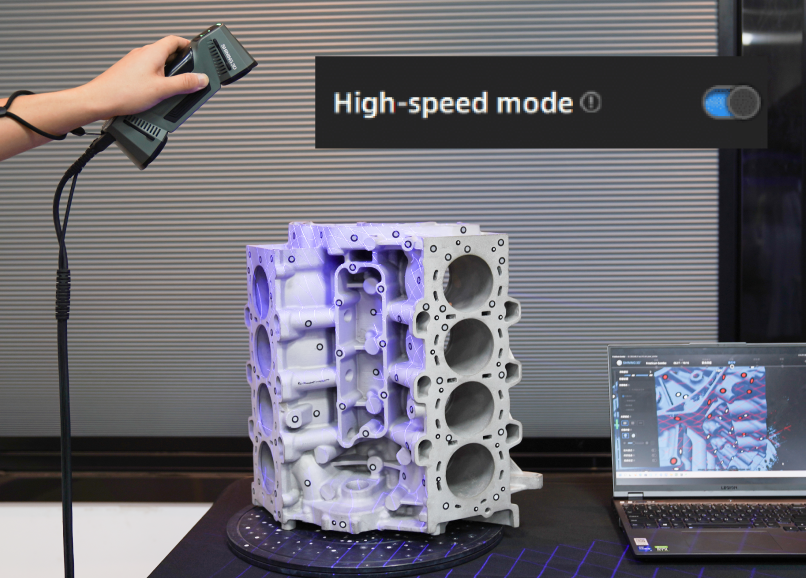

Fast Scan Speed
It's multiple line mode projects up to 50 laser lines (FreeScan Combo + version) and scan at speeds of up to 3,600,000 points/sec

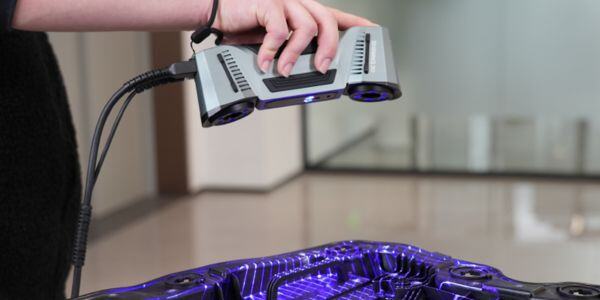

Powerful and Ergonomic
The FreeScan Combo Series boasts an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.
The optimized camera angle makes it more suitable for working in narrow and complex environments, allowing for fast data capture in seams.
Infrared Light Scanning
Metrology Kit
Magnetic marker balls for fast setup and easy positioning, Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.
WorldSkills Designated Competition Model
FreeScan Combo Series is designated as the official model for the Mechanical Engineering CAD Skill in WorldSkills Competitions.
It supports competitors in rapidly capturing complex geometries and transforming them into precise digital models for engineering analysis and design.
Our Support Coverage
What You Can Achieve with Our Scanners
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
-

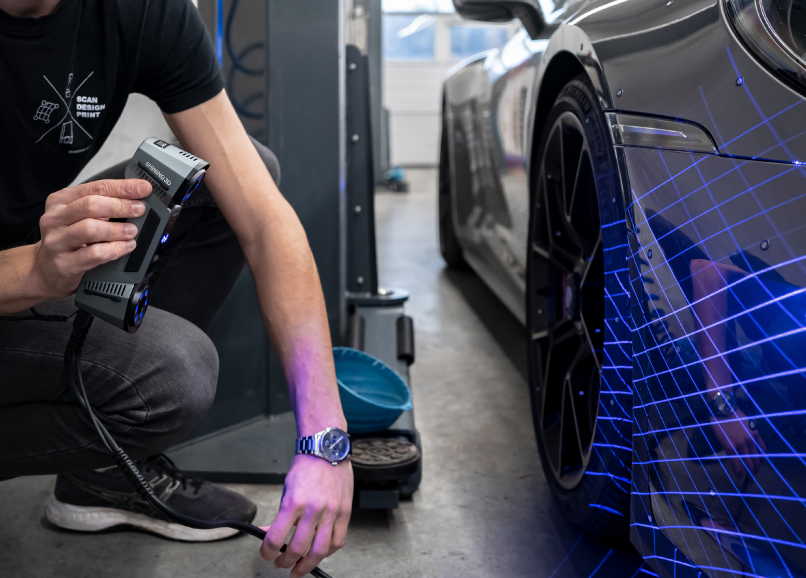

Automotive
With high scanning speed, fluency, and accuracy, the FreeScan Combo series can significantly enhance scanning efficiency without losing precision. It is an ideal choice for scanning vehicle bodies for surface deviation analysis and detecting the positional accuracy of sheet metal holes. Additionally, it can scan without markers using IR mode, which brings more scanning possibilities to the engine compartment and car chassis for redesign.
-
Energy, Heavy Industry & Public Utilities
The metrology cameras, blue laser projector, and good portability allow the scanner to accurately capture data both indoors and outdoors. It excels at obtaining precise data for large objects such as water turbines and petroleum drill bits, facilitating deformation and damage detection.
-
Engineering Machinery & Other Transportation
Equipped with three laser line modes, good portability, and metrology-grade accuracy, the FreeScan Combo series allows you to scan efficiently and accurately both indoors and outdoors. It is ideal for scanning hull accessories, and tracks for rail transit, as well as for inspection and reverse engineering.
3D Model Gallery
FreeScan Software
No subscriptions, no hidden fees.Â
SHINING 3D FreeScan Combo Series 3D Scanners come with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-step Guidance
The FreeScan software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
Multiple Scan Modes
With FreeScan software, the Combo supports four kinds of scanning modes, providing users with the flexibility to choose according to their needs.
AI Data Cleanup
FreeScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, delivering more ideal results.
Adjustable Resolution
FreeScan software can select corresponding solutions based on different scanned samples, making it more flexible in meeting various scanning requirements.
Discover More of FreeScan Combo in Action
FreeScan Combo Series demonstrates automotive 3D data capture using blue laser for reflective surfaces and markerless infrared scanning for interior components.
Dual Light Automotive 3D Scanning Demo | FreeScan Combo Series
FreeScan Combo Series demonstrates automotive 3D data capture using blue laser for reflective surfaces and markerless infrared scanning for interior components.
FreeScan Combo Series demonstrates deep hole 3D scanning using single line mode, enabling precise capture of narrow features and complex geometries for industrial inspection and measurement.
Deep Hole 3D Scanning Demo | FreeScan Combo Single Line Mode
FreeScan Combo Series demonstrates deep hole 3D scanning using single line mode, enabling precise capture of narrow features and complex geometries for industrial inspection and measurement.
FreeScan Combo Series demonstrates precise 3D scanning of highly reflective and dark automotive components, showcasing blue laser capability for challenging surface measurement applications.
Reflective Automotive Part 3D Scanning Demo | FreeScan Combo Series
FreeScan Combo Series demonstrates precise 3D scanning of highly reflective and dark automotive components, showcasing blue laser capability for challenging surface measurement applications.
FreeScan Combo Series demonstrates fast markerless 3D scanning using infrared light source technology, enabling efficient data capture without surface preparation.
Markerless Infrared 3D Scanning Demo | FreeScan Combo Series
FreeScan Combo Series demonstrates fast markerless 3D scanning using infrared light source technology, enabling efficient data capture without surface preparation.
Shining3D Freescan Combo
