• Ultimaker S5 3D Printer

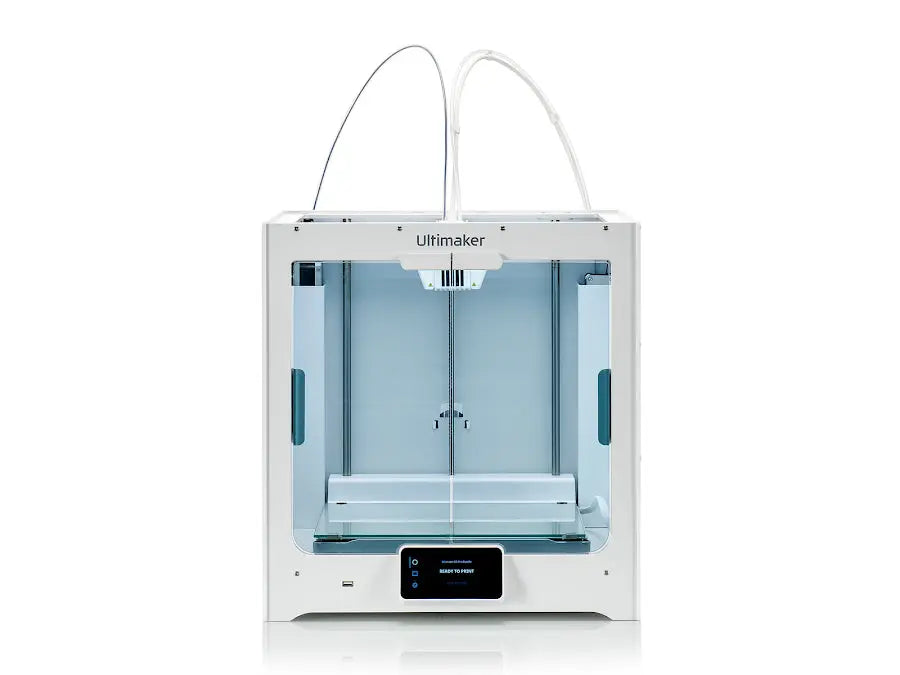

THE ULTIMAKER S5

A POWERFUL, LARGE-FORMAT, DUAL EXTRUSION 3D PRINTER

The Ultimaker S5 3D Printer is a reliable and easy-to-use machine that's great for professionals, educators, and any industrial or manufacturing applications.

Here are the key features of the Ultimaker S5 3D printer:

  • Large Build Volume
  • Dual Extrusion Capabilities
  • Swappable Print Cores
  • Print with Any Material
  • Automatic Bed Leveling
  • Onboard Camera
  • Free Ultimaker Essentials Software





PRINT LARGE, FUNCTIONAL PARTS

The Ultimaker S5 3D printer has one of the largest build volumes available, allowing you to create large, end-use parts, prototypes, and custom jigs and fixtures.

  • Build Volume: 330 x 240 x 300 mm
  • Prototype & create large end-use parts in-house
  • Print more parts at once
  • Beneficial for a wide variety of industries
Dentist Interview

Thermoformed Braces

POWERFUL, DUAL EXTRUSION 3D PRINTING

The Ultimaker S5 3D printer has a top-tier dual extrusion system that produces clean, geometrically complex parts.

  • Use multiple materials at once
  • 3D print complex parts with soluble support structures
  • Articulating nozzle-lifting system for cleaner prints

SUCCESSFULLY 3D PRINT WITH ANY MATERIAL

The Ultimaker S5 3D printer has swappable print cores, making it incredibly easy to print between a wide range of materials, including advanced materials like NylonX and even stainless steel metal.

  • Use a variety of Print Cores designed to help you succeed with any material.
  • Pivot quickly to new projects with the simple print core system.
  • Over 200 tested materials are available, including metal.
Print with Any Material

Get the best results with the Ultimaker S5 3D printer

FLAWLESS PRINTS, TIME AND TIME AGAIN

The Ultimaker S5 3D printer's automatic leveling system makes it easy to get started printing quickly so you can keep productivity up.

  • Automatic bed leveling ensures great prints every time.
  • Enhanced filament feed system and dual filament flow sensors.
  • Filament flow sensors - never lose a print.

AWARD-WINNING INTERFACE AND REMOTE PRINT MONITORING

The Ultimaker S5 3D printer has swappable print cores, making it incredibly easy to print between a wide range of materials, including advanced materials like NylonX and even stainless steel metal.

  • A 4.7-inch touchscreen for smooth interface control.
  • Monitor your print job’s progress remotely via the onboard camera.
  • Print remotely over Wi-Fi directly to your Ultimaker S5
Award Winning Interface

What materials are compatible with the Ultimaker S5 3D printer?

STREAMLINE YOUR WORKFLOW WITH ULTIMAKER ESSENTIALS

Ultimaker Essentials is free with the Ultimaker S5, giving you the power to print remotely via cloud data with increased security and better print queue management.

  • Reprint from queue history easily to keep production moving.
  • Duplicate and reorder print jobs without reslicing.
  • Upgrade to Ultimaker's Enterprise software to increase team productivity on a larger scale.



WHAT COMES WITH THE ULTIMAKER S5 3D PRINTER?

ACCESSORIES

  • Glass Build Plate
  • Spool Holder with Material Guide
  • Power Cable
  • Ethernet Cable
  • USB Stick
  • Print core AA 0.4 (an additional AA Core is already installed)
  • Print core BB 0.4 (already installed)
  • Nozzle cover (3x)



CONSUMABLES

  • Tough PLA Filament (750 g)
  • PVA Soluble Support Filament (750 g)
  • Glue Stick for Bed Adhesion
  • Oil & Grease for Maintenance



TOOLS

  • Hex Screwdriver (2 mm)
  • XY Calibration Sheet
  • Calibration Card

ULTIMAKER S5 3D PRINTER TECHNICAL SPECIFICATIONS



What are the Dimensions for the S5?

  • Build Volume: 330 x 240 x 300 mm (13 x 9.5 x 11.8 inches)
  • Assembled Dimensions (with spool holder installed): 495 x 585 x 780 mm (19.5 x 23 x 30.7 inches)
  • Compatible filament diameter: 2.85mm
  • Weight: 20.6 kg (45.4 lbs)



What are the Ultimaker S5's printer properties?

  • Print Technology: FFF (Fused filament fabrication)
  • Maximum Power Output: 500 W
  • Layer Resolution: 200 - 20 micron with 0.4mm nozzle (stock), 150 - 60 micron with 0.25 mm nozzle, 300 - 20 micron with 0.6 mm nozzle, and 600 - 20 micron with 0.8mm nozzle. Additional print cores are available.
  • XYZ Resolution: 6.9, 6.9, 2.5 micron
  • Build Speed: < 24 mm³/s
  • Nozzle Temperature: 180 - 280 °C
  • Nozzle Heat Up Time: < 2 minutes
  • Operating Sound: < 50 dBA
  • Build Plate: Heated glass bed - 20 - 140 °C
  • Build Plate Leveling: automatic advanced leveling
  • Feeder Type: Dual-geared feeder designed for advanced composite materials
  • Touchscreen Display: 4.7-inch (11.9 cm) color
  • Print Head: Dual extrusion print head with an articulating nozzle-lifting system
  • Print Core and Nozzles Replacement: Swappable Print Cores
  • Nozzles Diameters: arrives with 0.4 mm, but 0.25 mm, 0.6 mm, and 0.8 mm are available here.

 What is the Software for the Ultimaker S5?

  • Ultimaker Cura: print preparation software (free)
  • Ultimaker Essentials: printer management software (free and available to upgrade for enterprise solutions)
  • Supported OS: MacOS, Windows, and Linux
  • Supported File Types: STL, OBJ, X3D, 3MF, BMP, GIF, JPG, PNG
  • Printable Formats: G, GCODE, GCODE.gz, UFP
  • File Transfer: Wi-Fi, Ethernet, USB
