What this V6 hardened steel nozzle is for

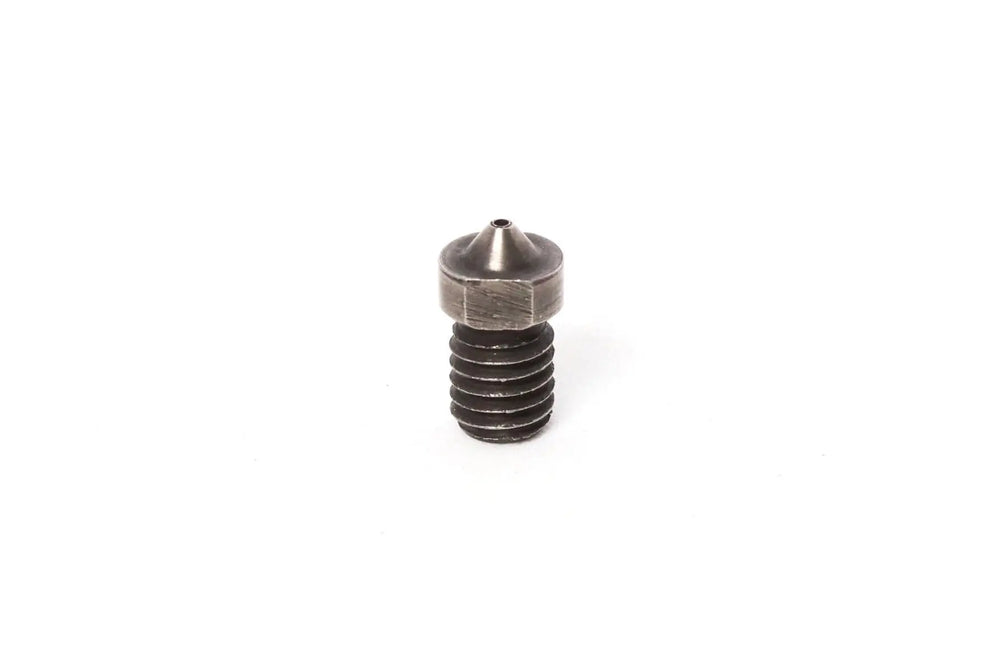

The V6 E3D Clone Hardened Steel Nozzle is a V6-style nozzle for 1.75mm filament with a 0.8mm orifice, designed for use with the E3D V6 heater block. It lets you modify a hotend for larger extrusion widths that support more substantial, stronger 3D prints while keeping the durability needed for abrasive materials.
Compared with brass nozzles, hardened steel offers better wear resistance for filaments that can quickly abrade softer nozzle materials. That makes this nozzle a practical utility option for regular printing with filled or specialty materials.
Key features of the hardened steel V6 nozzle
- Hardened steel construction: Built for enhanced durability and abrasion resistance.
- V6-style fitment: Designed for V6-style hotends, including E3D Clone and similar setups that use the E3D V6 heater block.
- 1.75mm filament support: Matched to common desktop 3D printer filament systems.
- 0.8mm nozzle orifice: Supports higher flow and stronger, more substantial printed parts.
- High temperature capability: Rated to a maximum temperature of 500°C.
- Precision machining: Helps support smooth extrusion and minimal clogging.
When to use a hardened steel nozzle for abrasive filaments
Hardened steel nozzles are well suited to abrasive filaments such as wood fills, glitter fills, and metal fills. Even glow-in-the-dark filament can abrade brass, so a hardened steel nozzle is a lower-cost alternative when a more premium wear-resistant nozzle is not required.
For abrasive filament printing, note that this nozzle is not suitable for use above 350°C. That limit is important when choosing materials and print temperatures for filled engineering filaments.
Use cases for a 0.8mm V6 nozzle
A 0.8mm nozzle is useful when the goal is faster material deposition, thicker extrusion lines, and stronger functional parts. It suits makers and small-batch users printing brackets, enclosures, workshop parts, jigs, and other models where durability matters more than very fine surface detail.
For users adjusting a V6 hotend setup, V6 nozzles also make it possible to change nozzle orifice sizes based on the application, whether the priority is finer detail with smaller nozzles or stronger, more substantial 3D prints with larger nozzle sizes.
Technical specifications
| Material | Hardened steel |
| Nozzle size | 0.8mm |
| Filament diameter | 1.75mm |
| Maximum temperature rating | 500°C |
| Abrasive filament temperature limit | Not suitable for abrasive filaments above 350°C |
