The xTool MetalFab supports stainless steel, aluminium, brass, carbon steel, galvanized sheet, titanium, nickel alloy, and magnesium. Cutting and welding thickness depends on the power configuration, cutting method, and material.

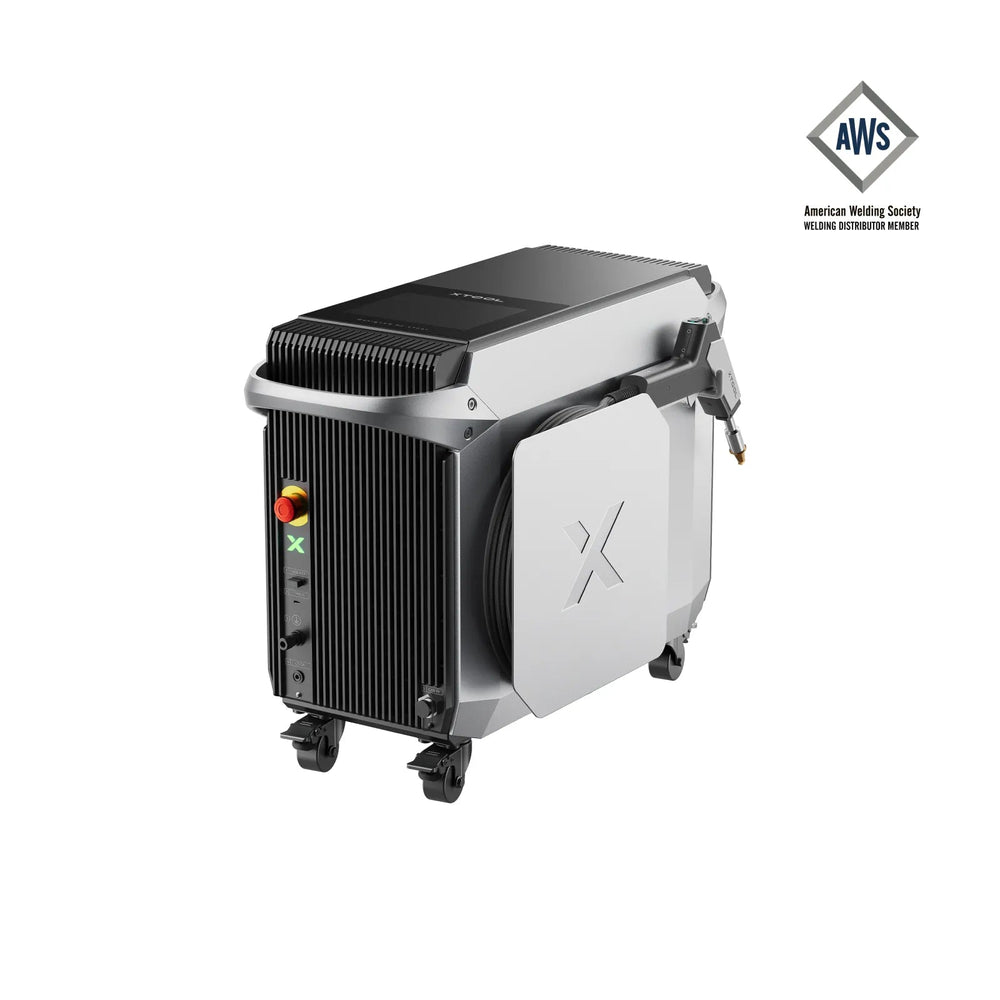

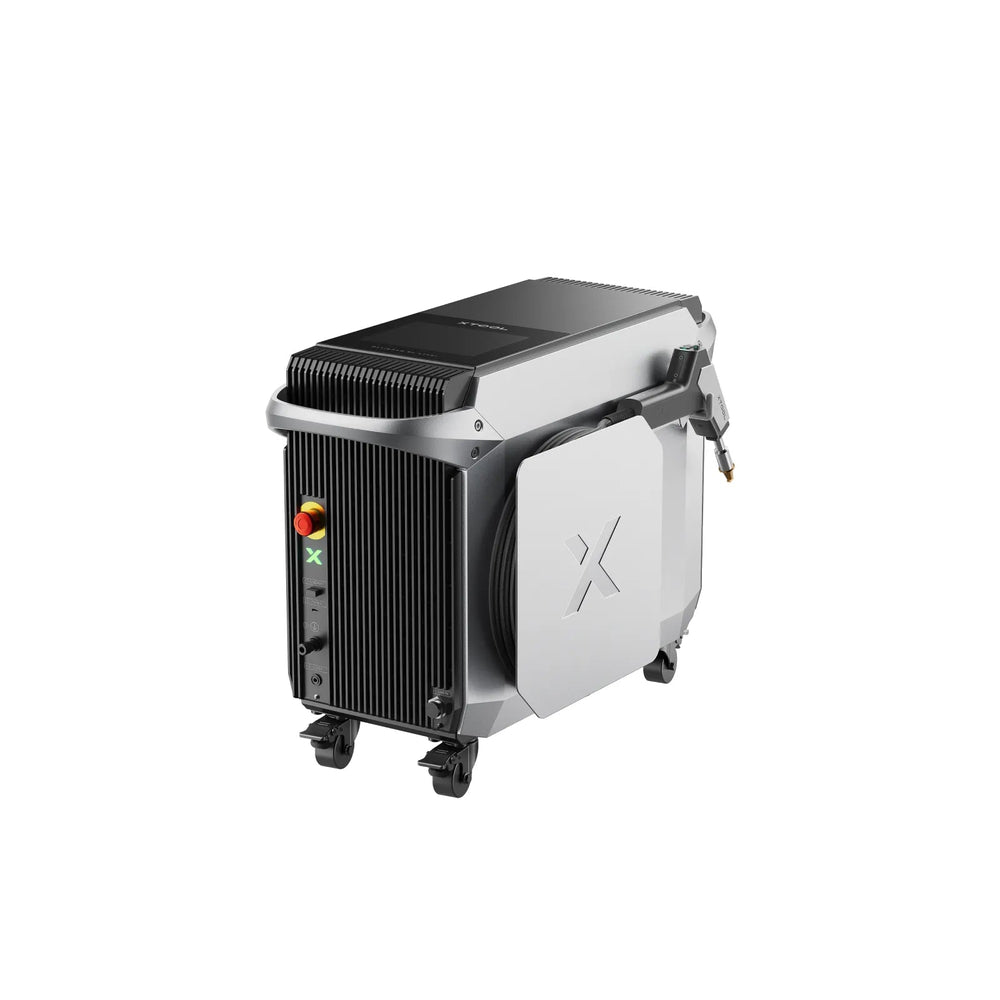

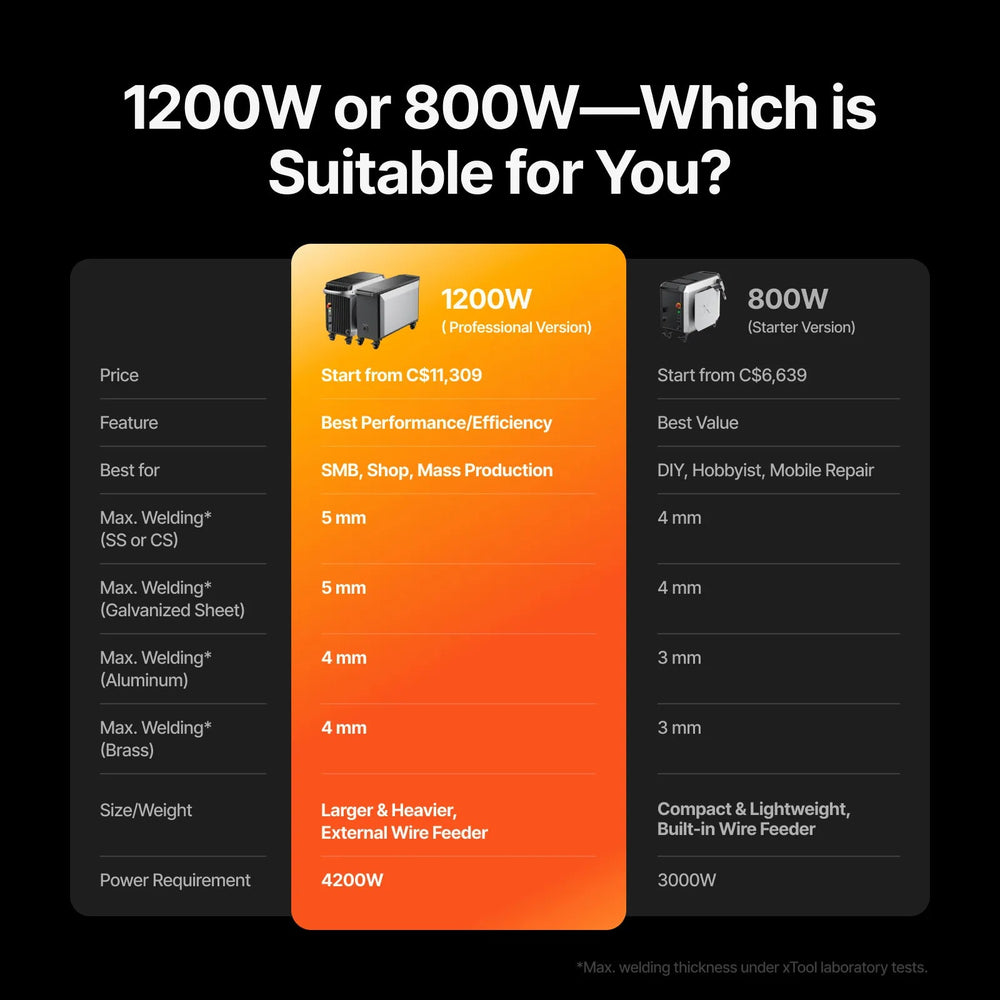

The 1200W model welds up to 5mm stainless steel or carbon steel, while the 800W model handles up to 4mm. The 1200W version includes a free wire feeder; the 800W version has a built-in wire feeding mechanism and is lighter.

For handheld cutting, the 1200W version cuts up to 5mm stainless steel or carbon steel, while the 800W version cuts up to 3mm.

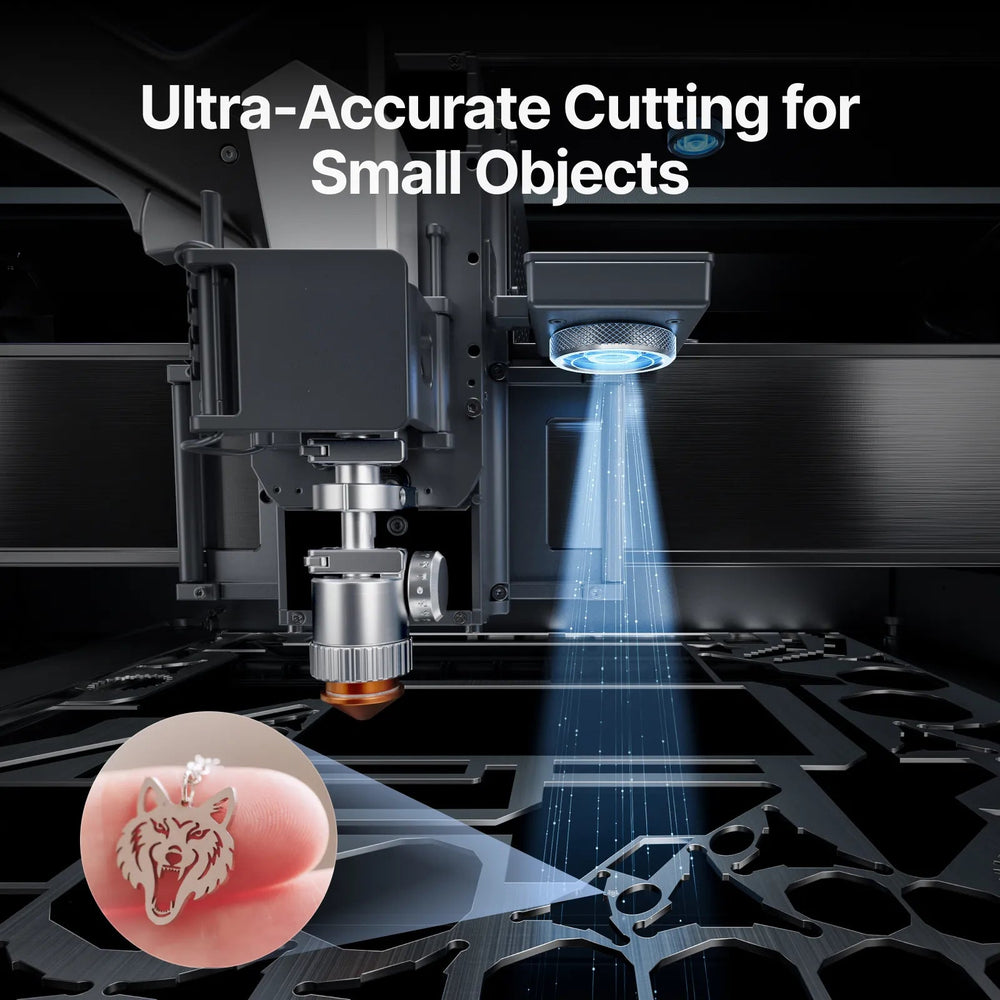

The 1200W CNC setup makes burr-free cuts in up to 5mm stainless steel, 4mm aluminium, 3mm brass, and 10mm carbon steel or galvanized sheet. It can cut carbon steel up to 12mm with dross.

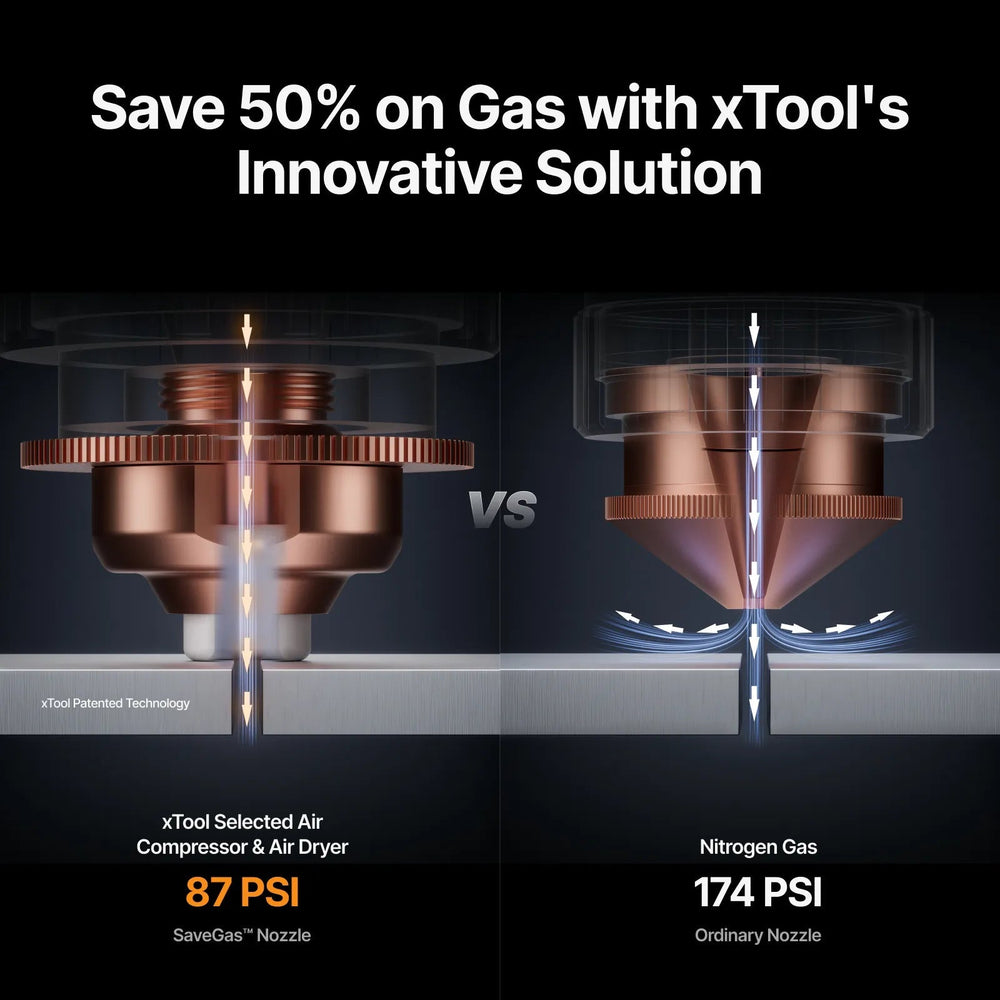

Welding most metals uses nitrogen or argon above 99.99% purity, at 0.1–0.2 MPa and 15–30 L/min; titanium alloys require argon. Cutting can use compressed air, nitrogen or argon, or oxygen, depending on the material and setup.

For thick carbon steel, the guidance recommends 99.99% oxygen at 0.05–0.06 MPa and a double-layer nozzle: D1.2 for carbon steel up to 8mm and D1.0 for steel over 8mm. Avoid intricate patterns, and note that prolonged cutting can cause overheating and require manual cooling.

Yes. The MetalFab supports vector engraving, vector filling, and bitmap filling on stainless steel, galvanized steel, titanium, and coated metals such as anodized aluminium. Avoid engraving highly reflective metals such as copper.

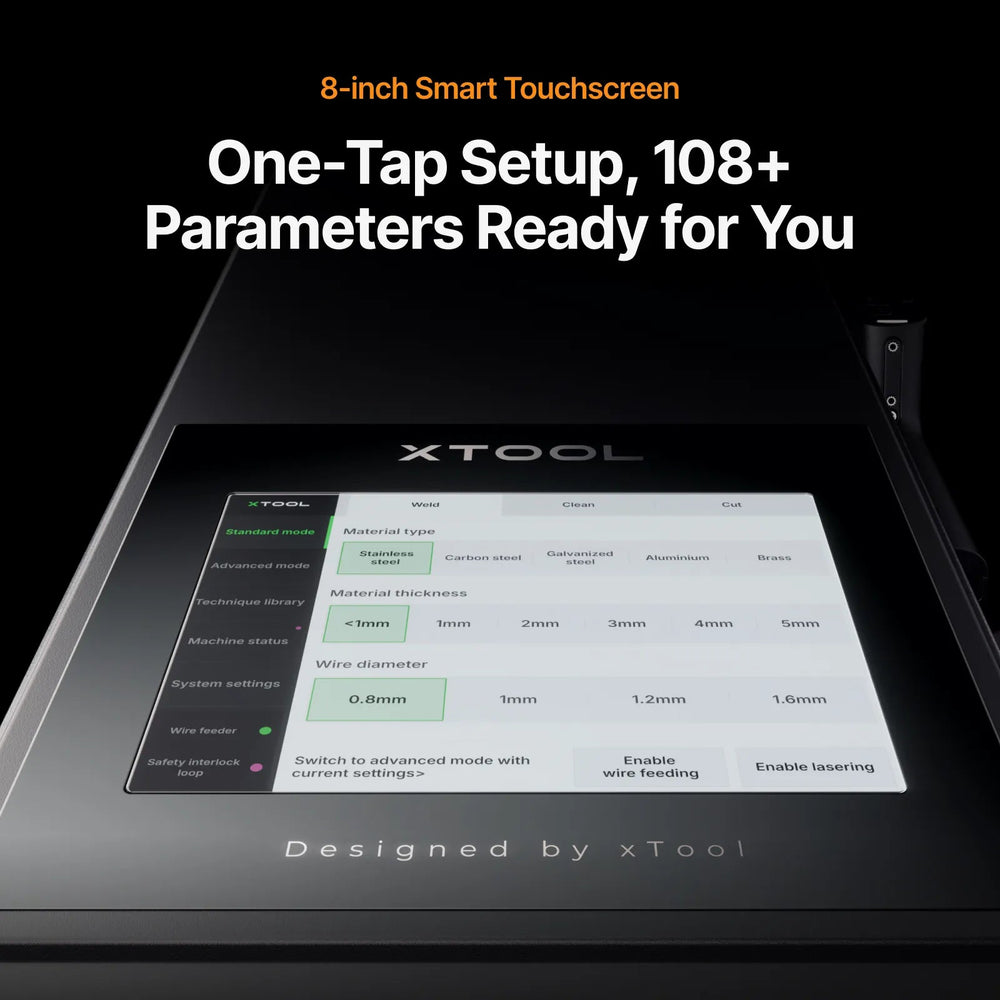

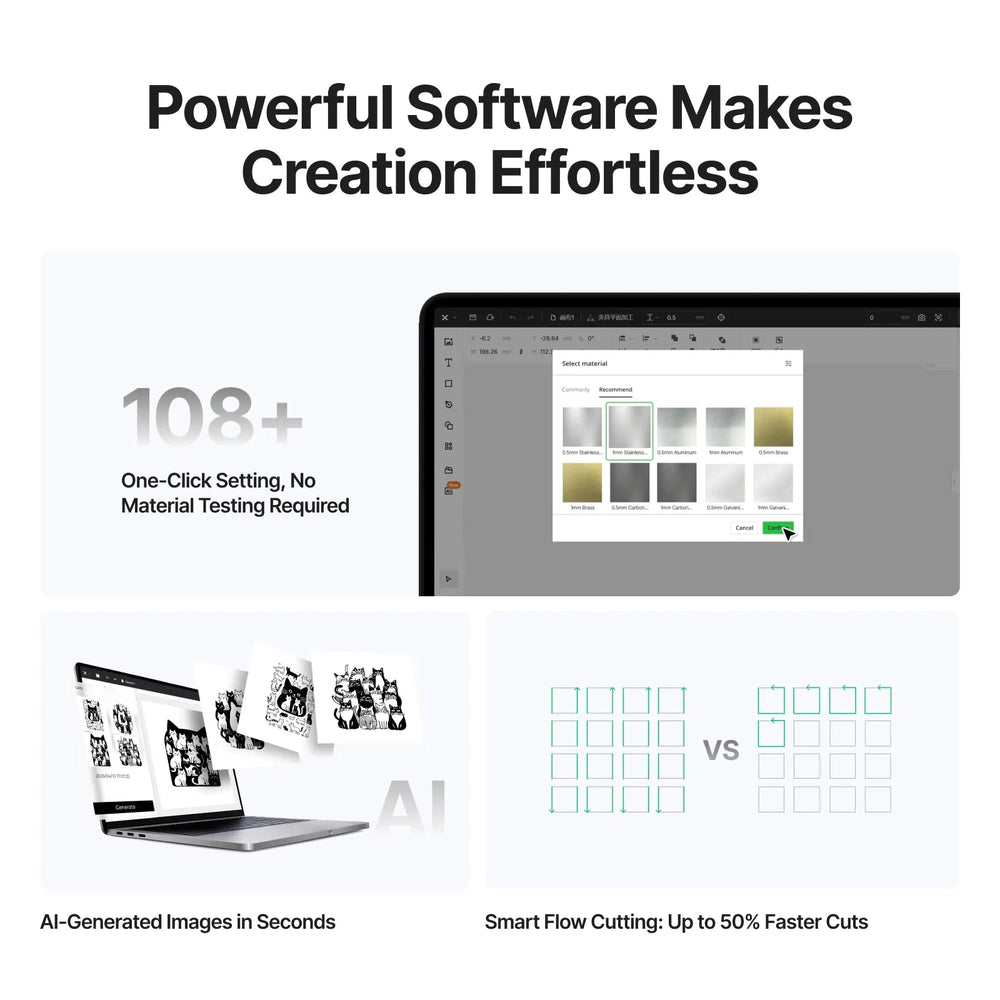

The MetalFab operates with XCS software. Its Material EasySet Library provides 100+ pre-optimized parameters for 30+ materials, and the software supports Auto Lead-in Lines and Automatic Path Optimization.

Yes. The package options identify the CNC Cutter as requiring a welder.
