Name: xTool SafetyPro AP2 Max Air Purifier with SuperCyclone
Brand: xTool
Availability: InStock

Air purification for laser cutting and fabrication

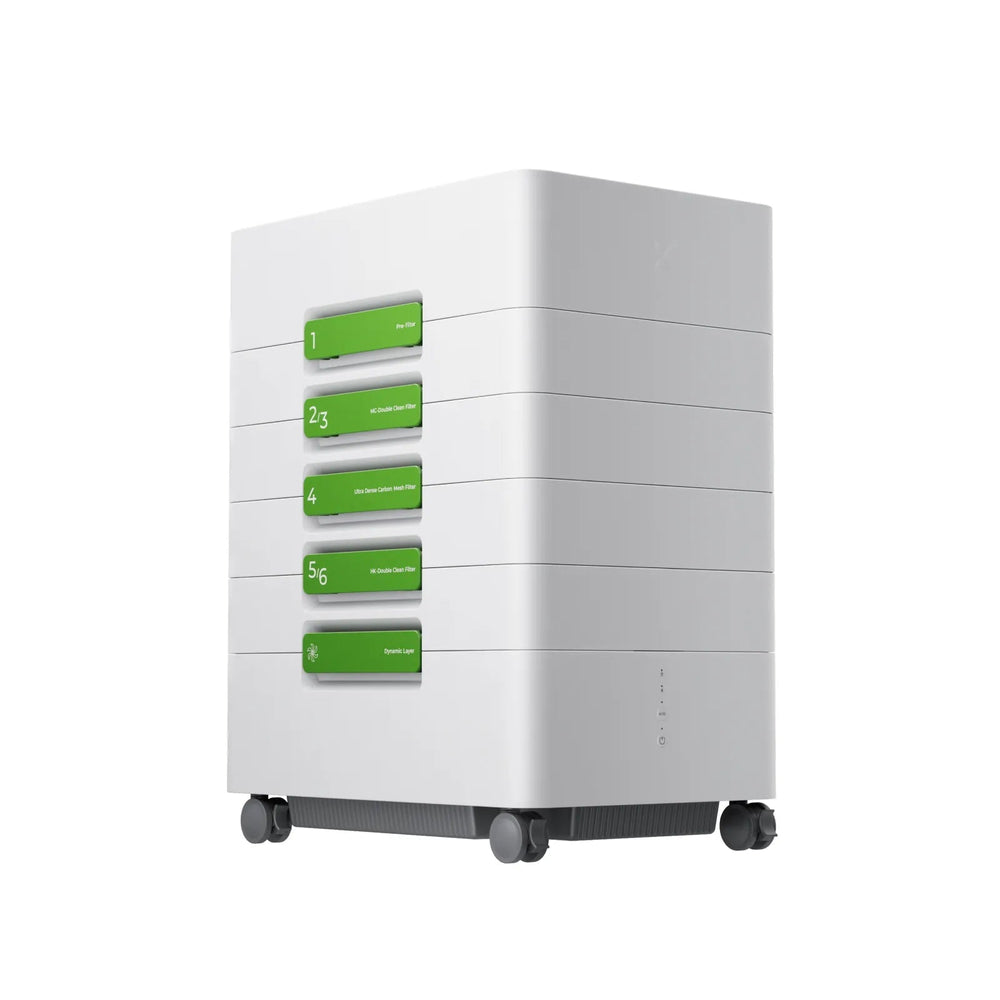

The SafetyPro™ AP2 and AP2 Max are air purifiers for laser work, using multi-stage filtration and SuperCyclone separation to capture particles and reduce fumes and odours. Choose the AP2 for desktop laser tasks or the higher-airflow AP2 Max for thick, large-format industrial laser and welding jobs.

Filtration and SuperCyclone particle separation

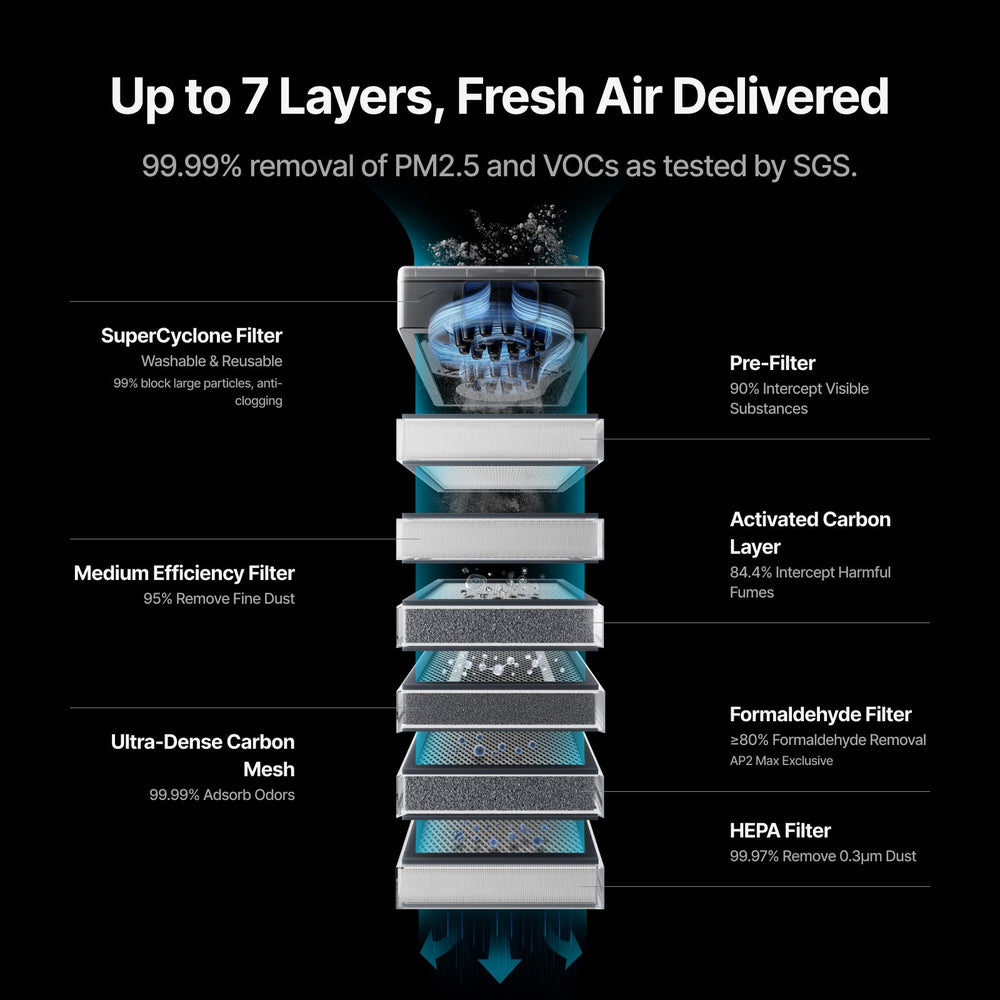

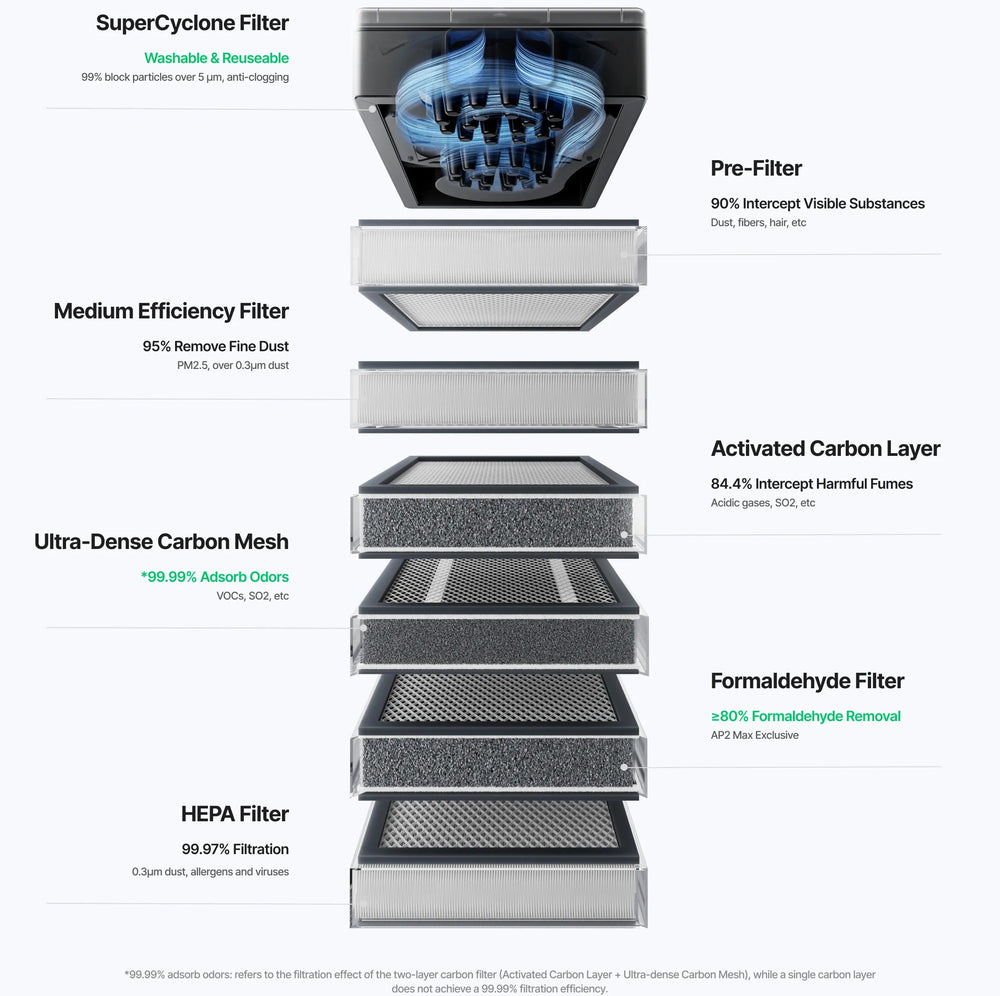

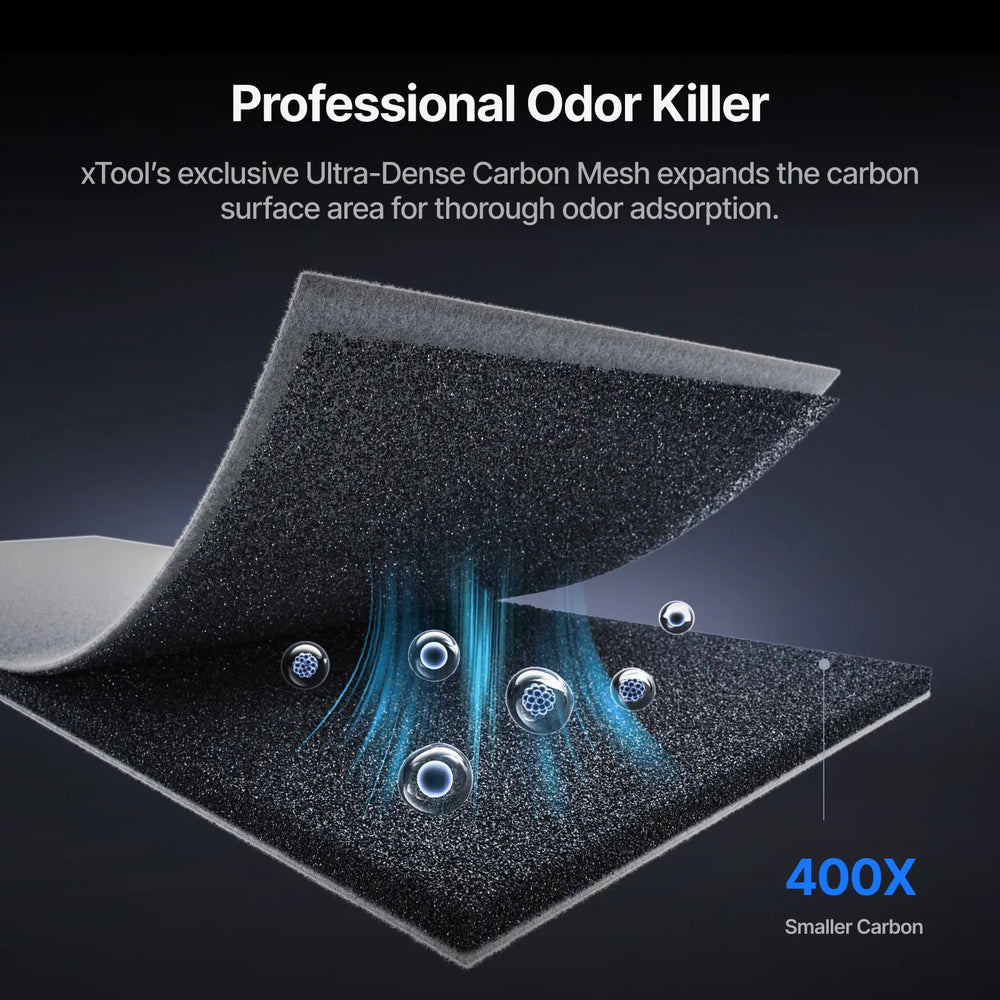

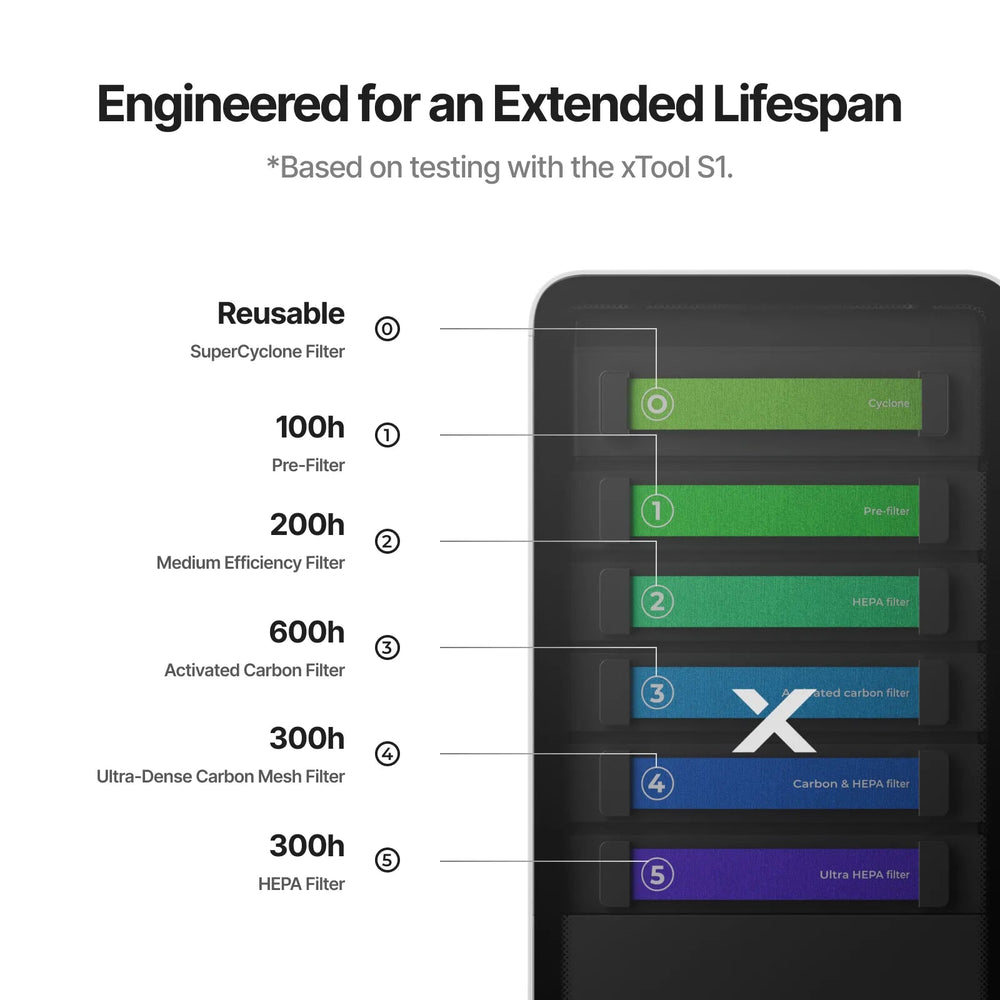

Up to 7 filtration stages remove 99.97% of particles. The AP2 Max adds an exclusive filter that captures and decomposes formaldehyde into water and CO2.

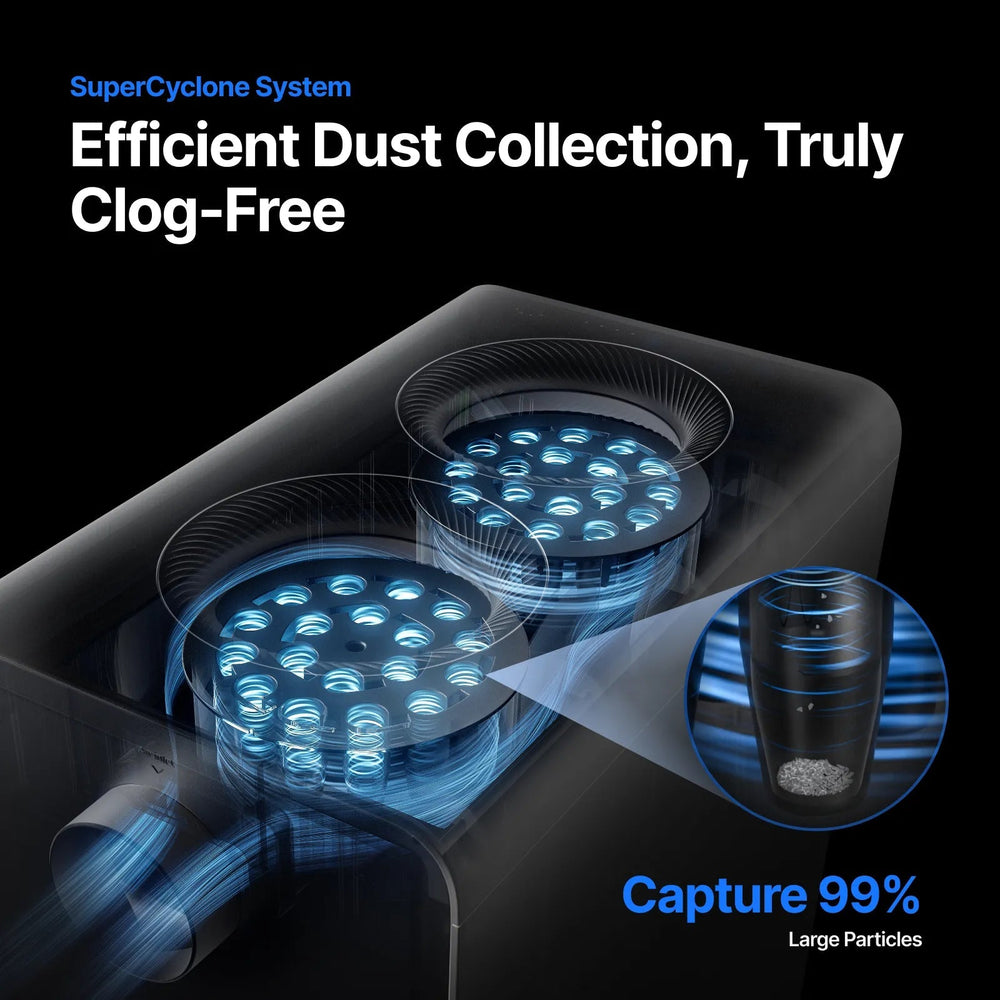

SuperCyclone pre-filtration separates large particles using 36 cyclones in the AP2 and 72 in the AP2 Max. Cyclone separation captures large particles, helps prevent filter clogging and can extend pre-filter lifespan up to 10 times.

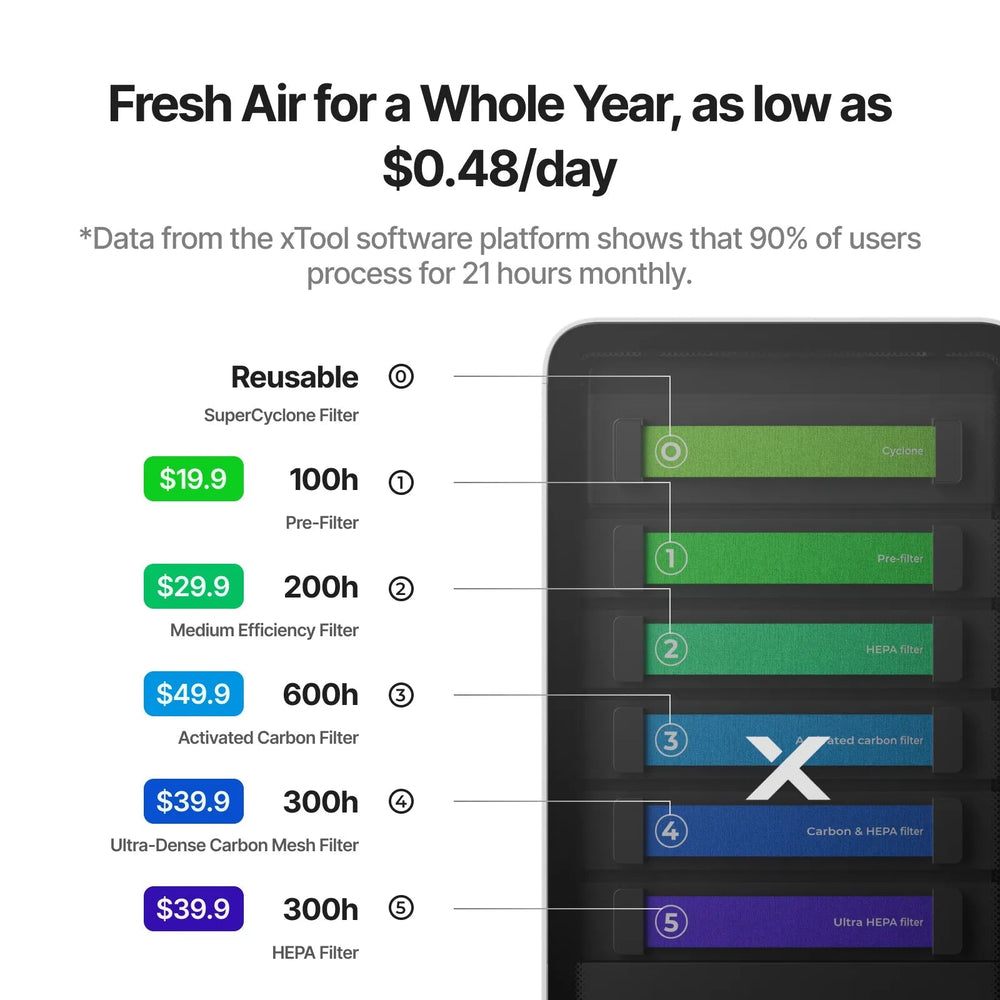

Washable, reusable cyclone supports cleaning and reuse, while filter-life monitoring tracks usage in real time.
Material-specific filtration settings automatically match a mode to the material selected by the user.

Automatic operation and practical maintenance

The purifier can start and stop in sync with xTool lasers, and the shutdown time can be customized to help clear remaining fumes. A high-torque centrifugal motor provides fan output for rapid exhaust, while a magnetic pull-out door gives access to the filter cartridge without dismantling the machine.

The adjustable PP hard tube can be bent to suit different installation environments. The product is described as low-dB in operation, but no noise measurement is provided.

Use cases for desktop and industrial laser work

Desktop laser cutting: the AP2's 150 m³/h airflow is intended for desktop tasks.
Thick or large-format laser work and welding: the AP2 Max's 700 m³/h airflow is designed for industrial jobs.
Laser processing with material changes: automatic material-based settings and filter-life monitoring help manage operation across different selected materials.

Selected media

Specifications

Technical specifications

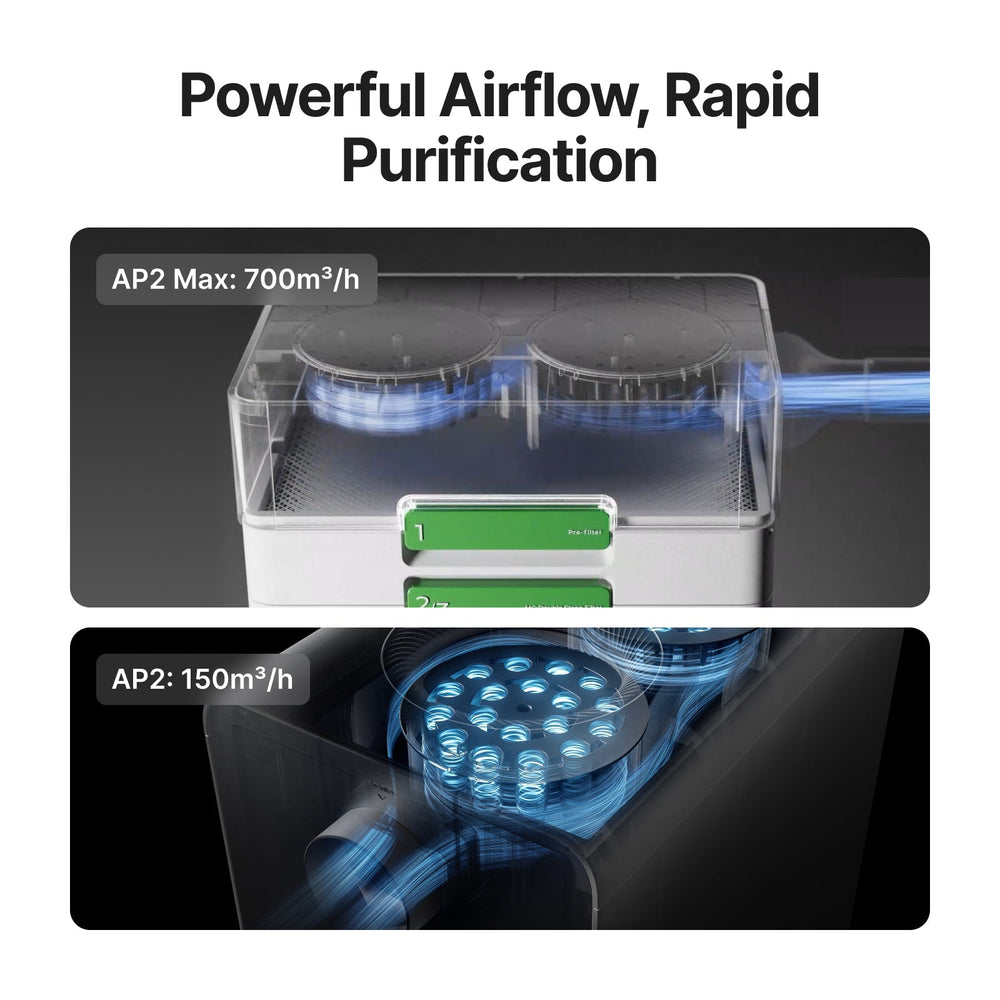

AP2 airflow	150 m³/h
AP2 Max airflow	700 m³/h
Filtration	Up to 7 stages; removes 99.97% of particles
AP2 cyclone array	36 cyclones
AP2 Max cyclone array	72 cyclones

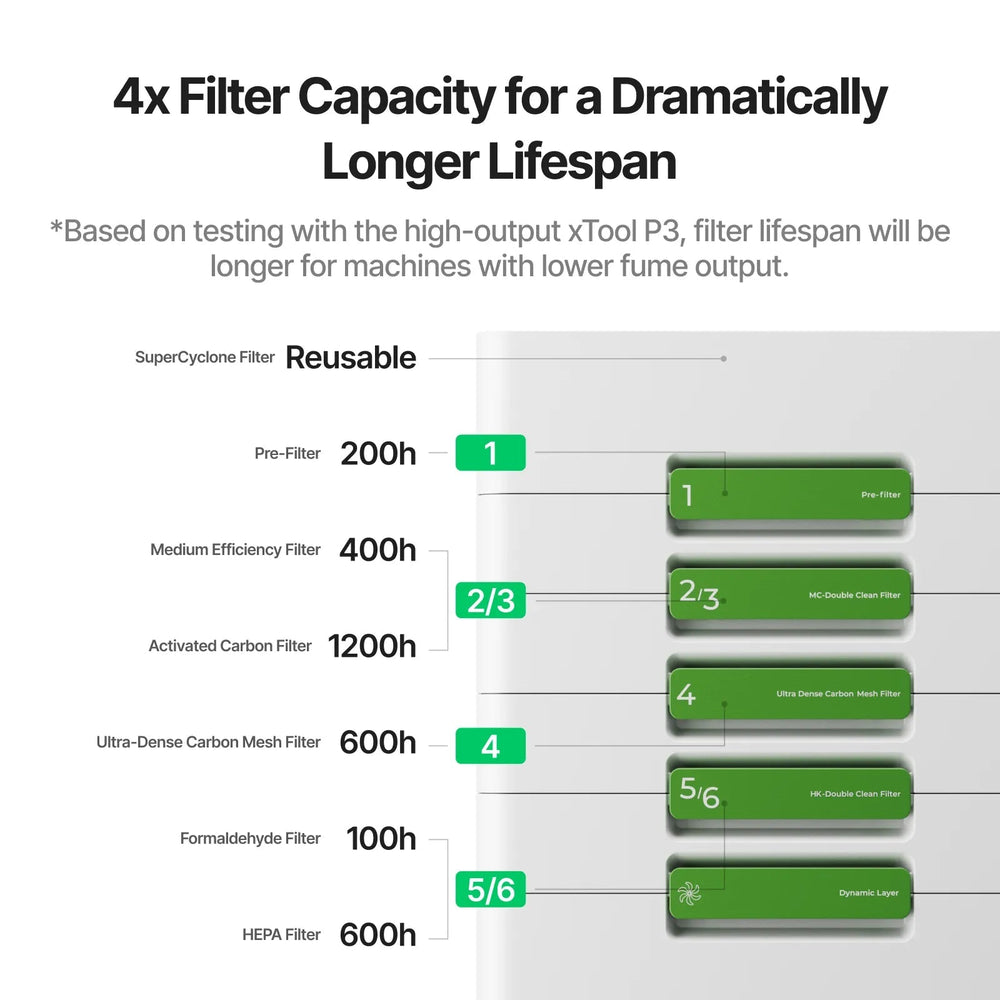

AP2 Max filter system	Larger filter system with up to 4× longer lifespan
AP2 Max filter	Exclusive formaldehyde filter
Exhaust pipe support	AP2 supports a 3-inch exhaust pipe. AP2 Max supports exhaust port diameters of 60–110 mm or 200–250 mm for compatible machines.

Compatibility

Will it work with my printer?

Laser machine compatibility

The AP2 is designed for machines with smoke extraction requirements of 150 m³/h or less. It supports a 3-inch exhaust pipe; an exhaust-port adapter may need to be supplied separately.

The AP2 Max can be used with other brands of laser cutters and welders when the machine requires no more than 700 m³/h and has an exhaust port diameter of 60–110 mm or 200–250 mm. Its smart features will not function with other brands.

The AP2's 3-inch exhaust-pipe compatibility also applies to hybrid 3D printers with laser modules, DTF machines and 3D printers when their exhaust pipe matches this size.

Other equipment compatibility

The AP2 can be used with the IF2 2.0 inline duct fan; the AP2 Max cannot. The AP2 is not suitable for the xTool P3, which has a 238 m³/h fume extraction requirement.

FAQ

Frequently asked

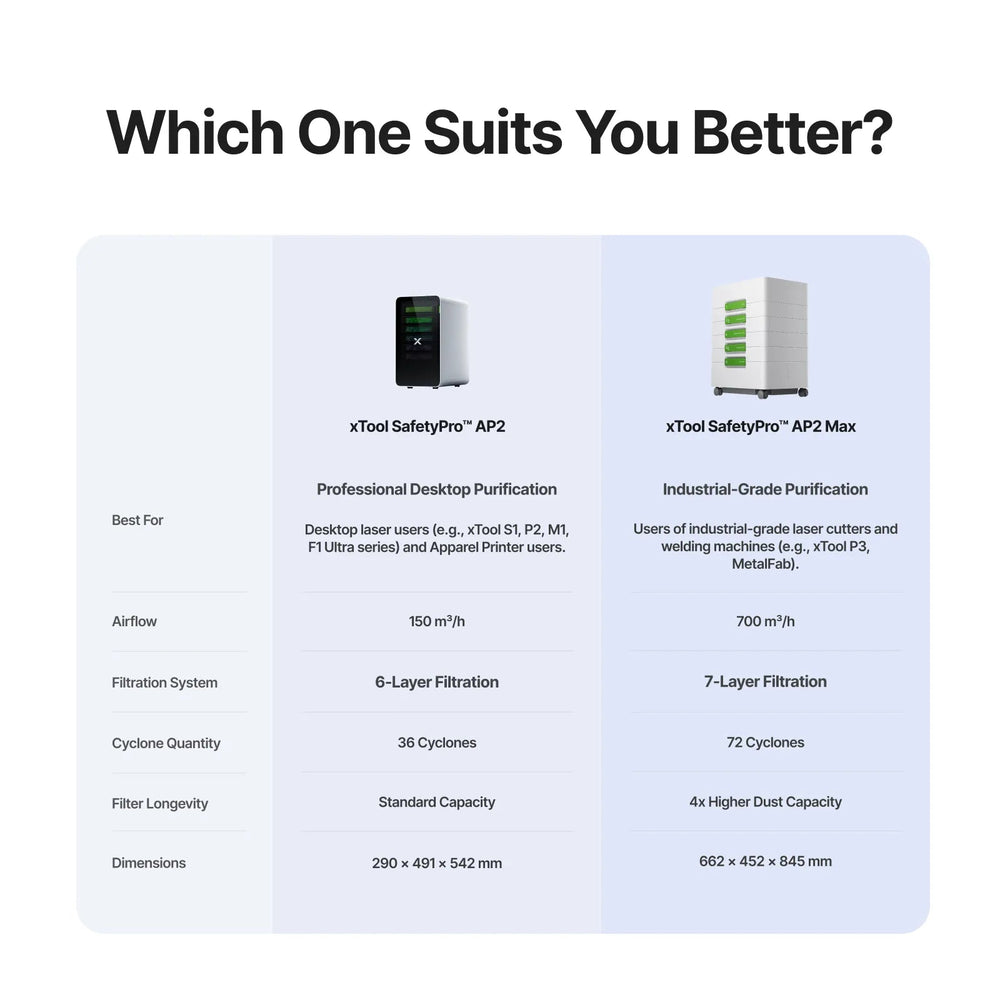

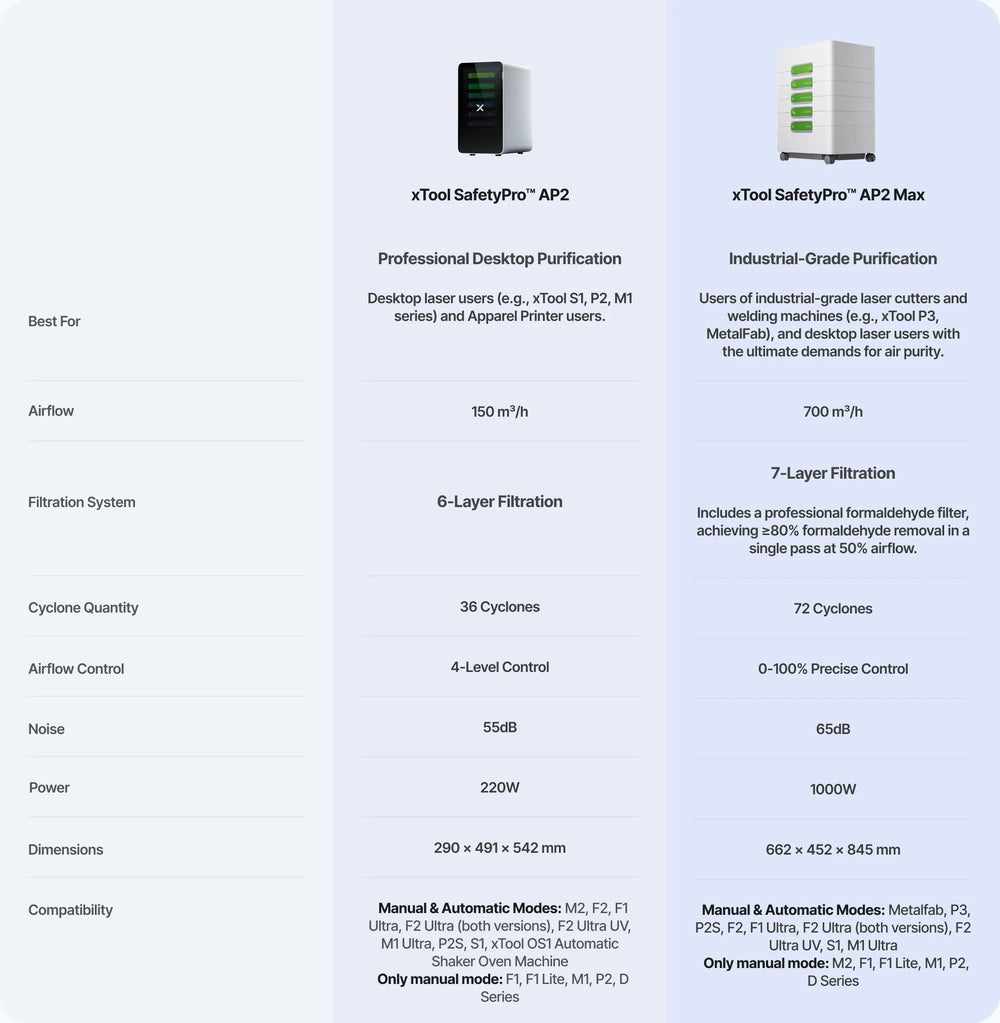

What is the difference between the SafetyPro AP2 and AP2 Max?

The AP2 provides 150 m³/h airflow and has 36 cyclones. The AP2 Max provides 700 m³/h airflow, has 72 cyclones, a larger filter system with up to four times the lifespan, and an exclusive formaldehyde filter.

Can I use the AP2 Max with another brand of laser cutter or welder?

Yes, if the machine requires 700 m³/h or less and its exhaust port diameter is 60–110 mm or 200–250 mm. The AP2 Max smart features will not function with other brands.

Which laser machines are compatible with the AP2 air purifier?

The AP2 is designed for machines with smoke extraction requirements of 150 m³/h or less. It supports a 3-inch exhaust pipe, and an adapter for the machine's exhaust port may need to be supplied separately.

Can I connect the AP2 to an xTool P3?

No. The P3 has a fume extraction requirement of 238 m³/h, which exceeds the AP2's 150 m³/h capacity.

Can the AP2 or AP2 Max be used with an IF2 2.0 inline duct fan?

The AP2 can be used with the IF2 2.0. The AP2 Max cannot, because the airflow difference can cause the purifier or duct fan to stall and trigger a fault alarm.

How often should I clean the SuperCyclone?

Clean the cyclone every six months as a general recommendation. The cleaning interval can be adjusted based on actual usage conditions.
