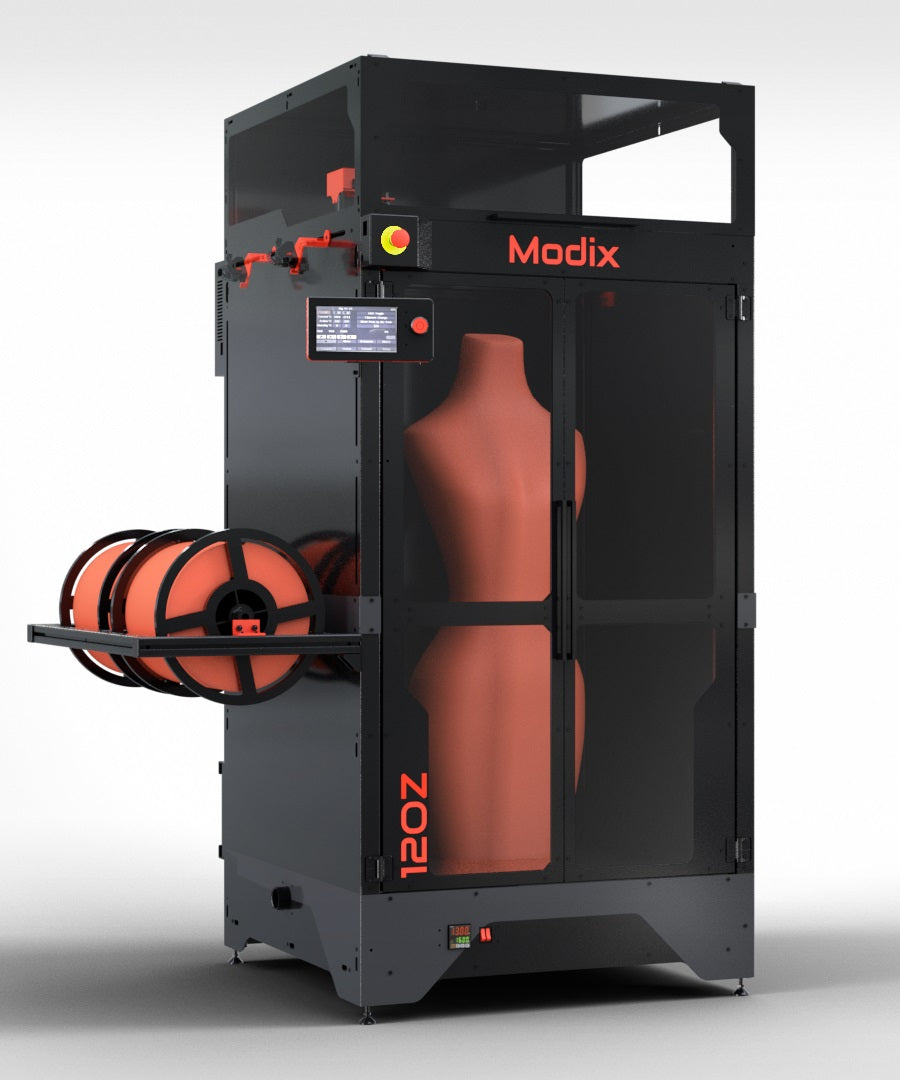

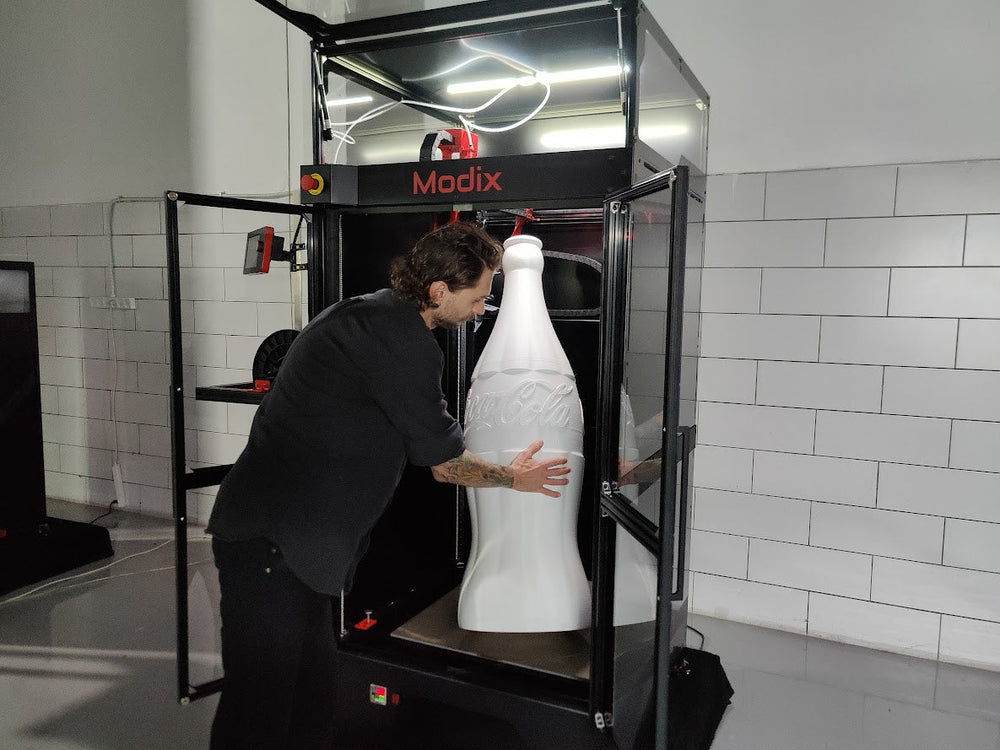

Modix BIG-120Z 3D printer is a unique 3D printer that allows printing tall objects in one piece which make them stronger and reduce post-processing time. BIG-120Z is a perfect match for the needs of the: visual communication, interior design, art, mannequin, props, entertainment, and engineering industry.

Technical Specifications:

Modix Big-120Z generation 4 shares similar specs with all other Modix printers

These are the unique specifications:

  • Print Volume: 600 x 600 x 1,200 mm (XYZ)
  • Machine dimensions: 906 x 1060, 2,000 mm
  • Machine Weight: 160 kg
  • Z-axis guides- HIWIN MGW Linear Rails – included
  • The price includes 12 months of warranty and lifetime support. The warranty does not include degradable (PEI sheet and nozzles) and consumables. The warranty can be extended up to two additional years, please select the desired extension below.
  • Shipping cost is a regional flat fee that should be selected at the side of this product page after you select the required components.
  • Ordering add-ons only (without a printer) will require an additional shipping fee.

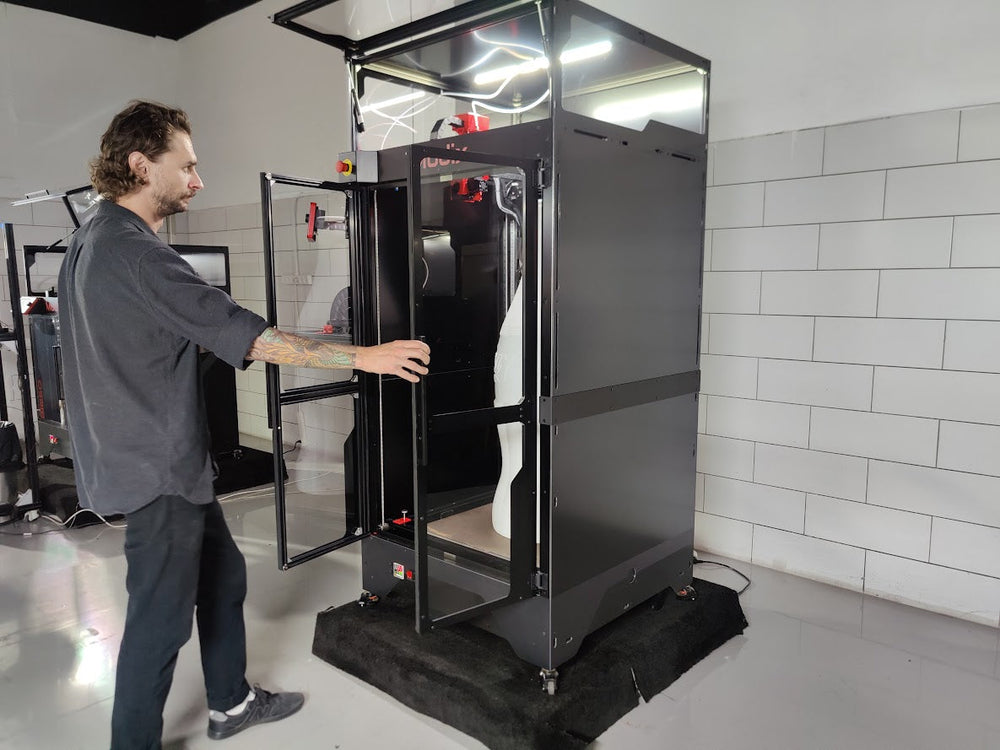

Fresh New Design & Improved Enclosure

The new Modix Generation 4 enjoys a freshly updated design and a modern logo font. In addition, the enclosure has been improved by adding the following features:

  • Pneumatic top lid
  • Rear maintenance opening hatch
  • Sturdy door hinges
  • Door and lid sealing strips
  • Improved internal led lighting

IDEX dual printing add-on

IDEX” stands for independent dual extruder, where each extruder is independently controlled. Meaning, while the active extruder is printing, the second extruder is “parked” outside the printing area. Therefore, printing advanced models with
internal geometries are made possible more easily, by using water-soluble filament.

The IDEX is sold as an add-on in all generation 4 printers.

It includes:

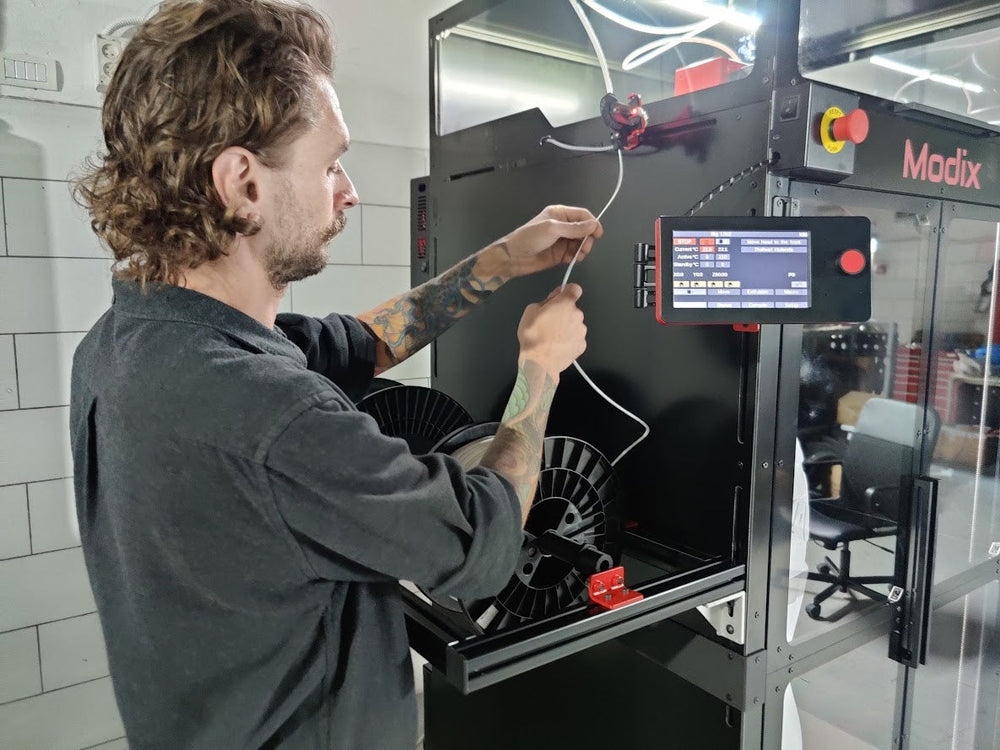

    • Secondary printing subsystem: Griffin print head, clog detector, PTFE, spool mount.
    • Motion system: secondary Y-axis motor with the required components (belts, pulleys, etc.).
    • Metal brackets for both Y axis and print heads
    • Wires, drag chains, and optical end-stops.

Fully automated calibration

With Generation 4, all our line of 3D printers now come with the electronic expansion board named “Duex 5” (before, this was provided by default only with BIG-Meter and BIG-180X models).

By using Duex 5, a dedicated stepper motor driver is allocated for each Z and X-axis motor. As a result, Modix printers now offer a full set of automated calibration routines to all Generation 4 models, including automated bed tilt, bed leveling, gantry alignment, and Z offset calibration.

Fast 3D Printing

Modix’s Generation 4 printers are capable of printing significantly faster than before.  Travel
speed of up to 350 mm/s, and high quality printing at 100 mm/s and higher
speeds for printing at draft quality.

This higher print speed has been made possible thanks to strong NEMA 23 motors on the X-axis instead of NEMA-17 motors. In addition, the weight has been reduced on the Y axis as the weight of one motor is split now into two independent ones, using the IDEX setup.

Emergency stop button

Modix Generation 4 models are all equipped with an emergency stop button. The stop button resets the Duet controller and stops printing immediately.

Frontal power switch, tilt screen & emergency button

The taller printers, BIG-Meter and BiG-120Z now have some add-ons by default:

  • Tilt screen – Mounted on an articulated arm, the tilting touch screen provides easier access to information and commands for customers at different heights. It is also very convenient to use during system calibration: you can rotate the touch screen for easy access when you are working and looking at the print head performance.
  • Frontal secondary power switch – this feature is very convenient if the printer is located in a tight corner, or in between other equipment.
  • Large secondary reset button – improves accessibility to the reset button.

Improved Z axis

Modix Generation 4 3D printers have stronger Nema-23 motors and CNC-machined brackets that hold the bed firmly and at a higher level of accuracy.

Optical end-stops

End-stop switches are now upgraded to optical switches in all Generation 4 printers. Optical switches are more accurate and have a high level of repeatability over time. This is especially important for job recovery after a power outage.

Improved PTFE management

With Generation 4, the PTFE tube rests in a roller guide that ensures its most relaxed position and as a result, this reduces the friction inside the tube.
