Large-format 3D printing with industrial-scale build volume
The Modix BIG-Meter is a large-format 3D printer with a 1,000 × 1,000 × 1,000 mm build area. It is designed for full-scale prototypes, tooling, moulds and end-use parts in a single print.
GEN5 hardware for faster, more capable printing
- Griffin Ultra print head for high-speed printing, with the page stating up to 6× faster performance.

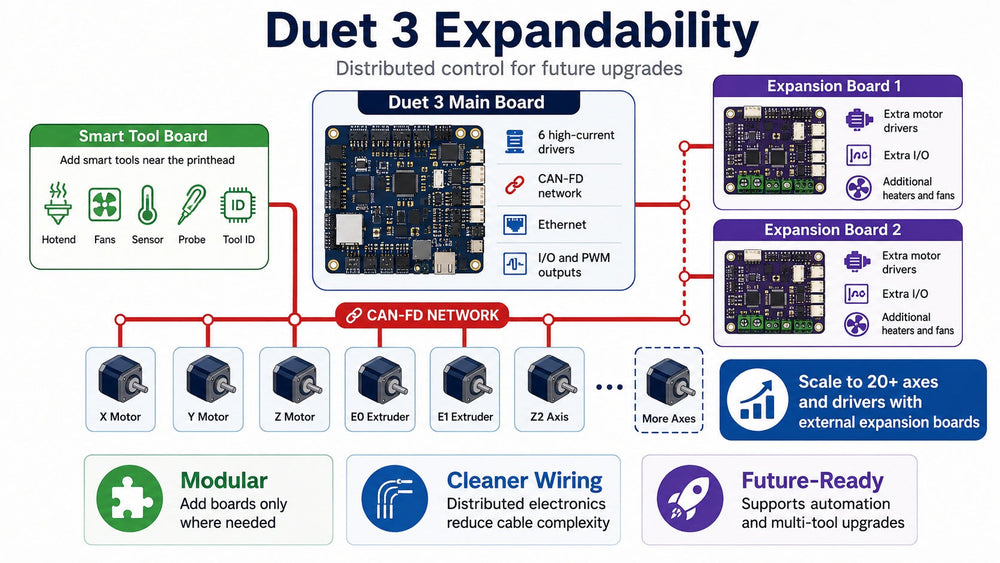

- GEN5 electronics with Duet 3 6HC, CAN bus print heads, Ethernet and a removable Wi‑Fi dongle.

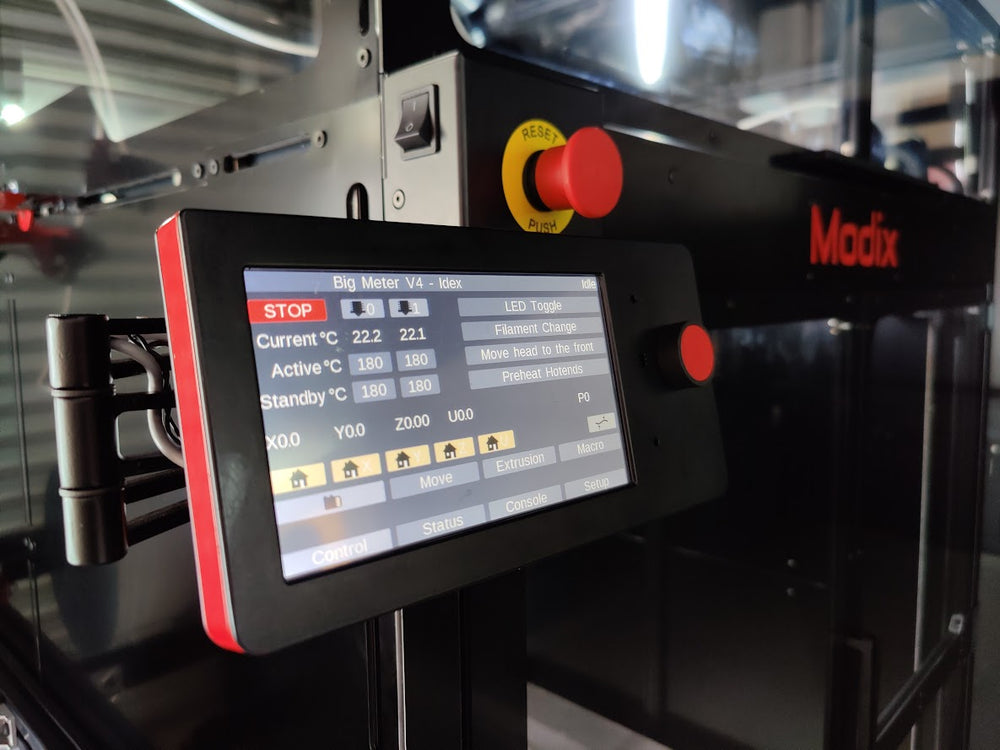

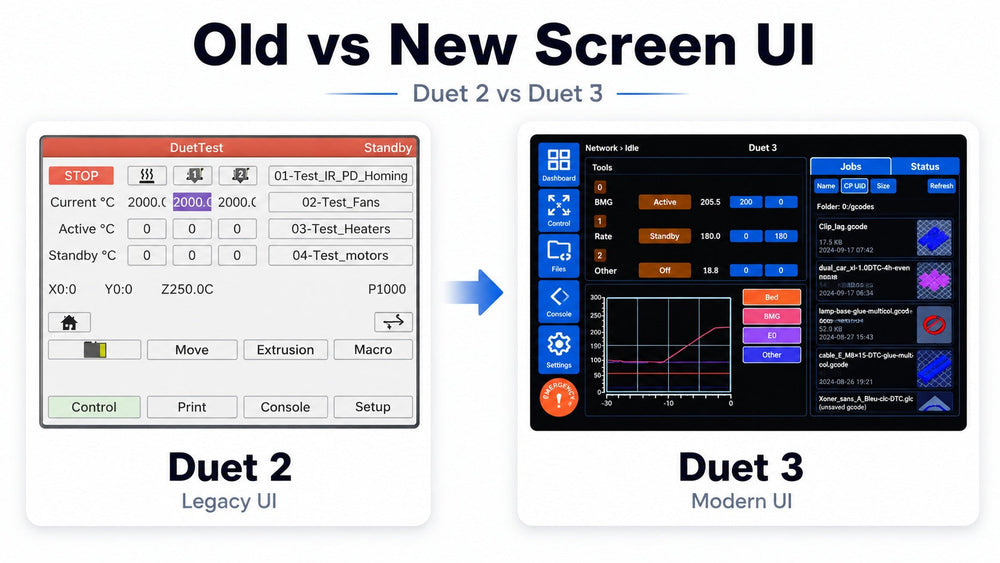

- New touchscreen and a tool board with accelerometer on the print head.

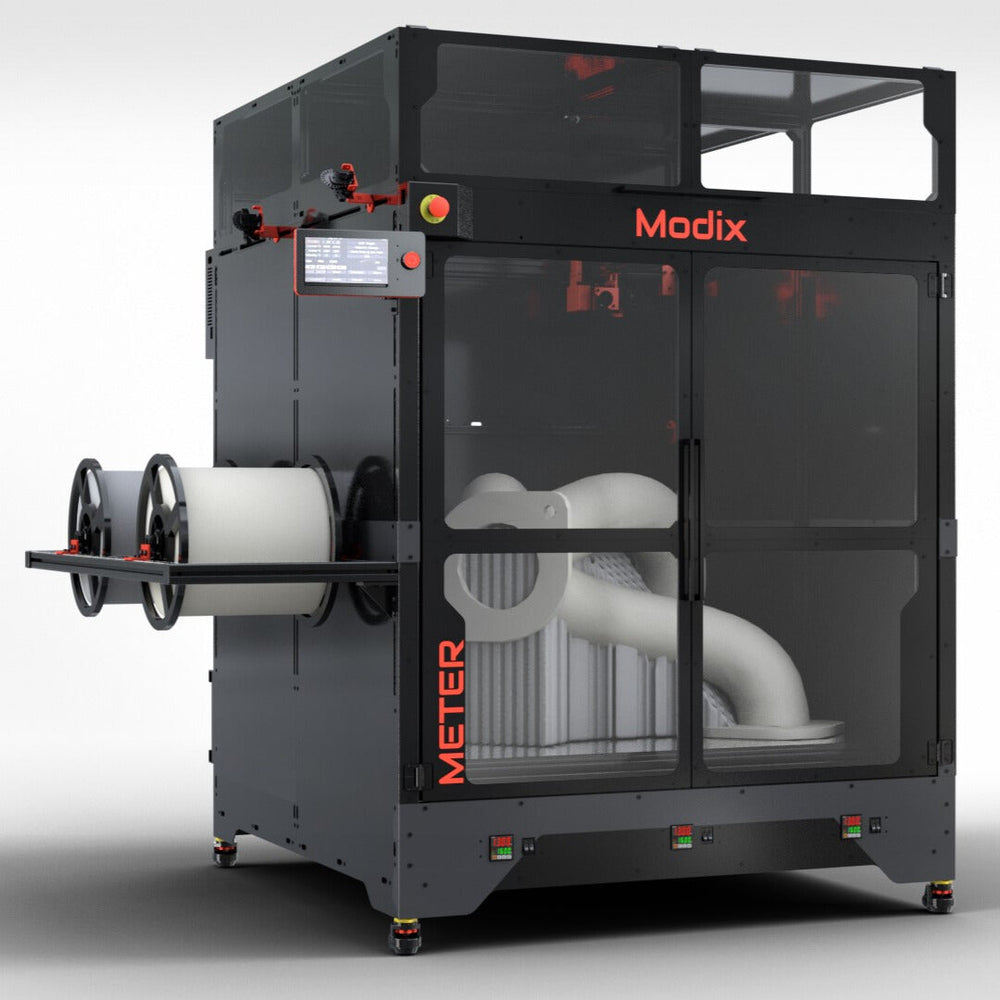

- Included enclosure, HIWIN Z rails, tilt screen with E-stop, casters and an 8 kg spool shelf as standard.
Large-part production and modular use cases
The BIG-Meter suits makers, engineers and small teams that need meter-scale output for prototypes, fixtures, tooling and production parts. Its 3-zone heated bed, individually controlled Z motors and 100-point bed levelling support consistent results on large prints.
- Large prototypes: print full-scale parts in one piece.
- Tooling and moulds: produce large-format fabrication components.
- End-use parts: make functional parts with fewer seams.
- Expandable workflows: the modular platform supports optional dual-head IDEX configurations.
Shipping as a self-assembly kit, the BIG-Meter includes guided online setup support and live support. Power options are available for North America and for EU, AU and UK customers.
Technical specifications
| Print volume | 1,000 × 1,000 × 1,000 mm (39.4 × 39.4 × 39.4 in) |
| Printer dimensions | 1,739 × 1,424 × 1,958 mm (W × D × H, with enclosure) |
| Shipping weight | ~200 kg |
| Delivery | Self-assembly kit (guided online manual and live support) |
| Print head | Single Griffin extruder, 1.75 mm filament (dual head IDEX optional) |
| Electronics | Duet 3 6HC, CAN bus, Ethernet + removable Wi-Fi (GEN5); tool board with accelerometer on the print head, new touchscreen |
| Enclosure | Included; aluminium composite panels, polycarbonate doors and top lid |
| Z axis | 4 motors, controlled individually, HIWIN linear rails; automatic bed tilt calibration, 100-point bed leveling |
| Heated bed | 3 zones, 3 × 1,000 W; up to 120 °C |
| Power | Single phase, 208 to 240 V; North America: NEMA L6-30P 30 A; EU/AU/UK: IEC 309 32 A blue (2P+E) |
| Warranty | 12 months + lifetime support (excludes degradable items and consumables; extendable below) |
