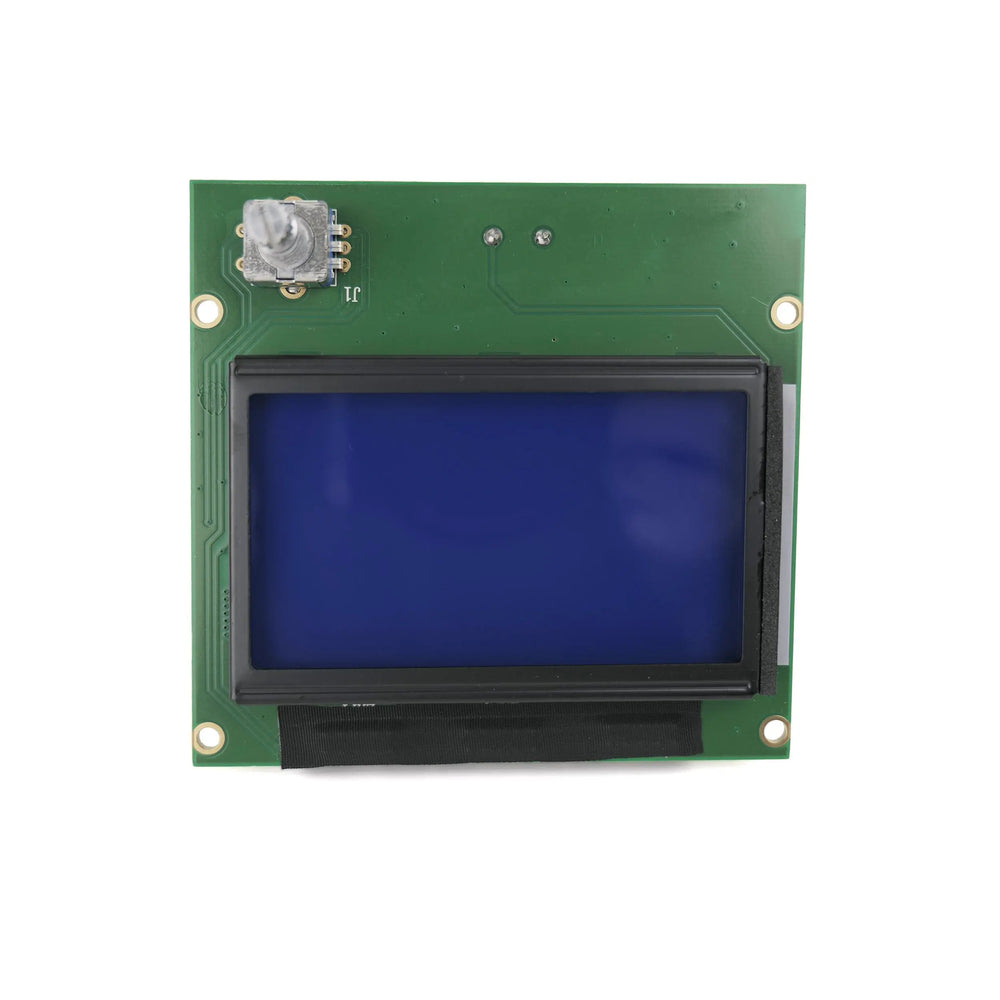

Creality replacement LCD screen for printer control and monitoring
The Official Creality LCD Display Screen is a replacement control screen for select Creality 3D printers, including the Ender 3, Ender 5, and CR-10 series. The display gives users a straightforward interface for navigating menus, adjusting settings, and monitoring printing operations.
Key features of the Creality 12864 LCD display
- 12864 LCD panel: Provides clear and concise visual feedback during printer operation.
- Rotary encoder control: Uses a rotary encoder and push-button for efficient menu navigation and option selection.
- OEM-style replacement: Designed as a Creality replacement part for supported printer models.
Installation and connection details
The LCD screen connects to the printer mainboard through ribbon cables and typically uses EXP1, EXP2, and EXP3 headers. Installation involves mounting the display to the printer's designated mounting points and connecting the appropriate cables.
For model-specific installation steps, consult the printer manual or Creality's official support resources. Some machines may also require firmware updates or additional configuration for proper operation.
What is included in the package
A standard package for the Creality 12864 OEM LCD Screen includes the 12864 LCD screen unit, two ribbon cables for connection, a rotary encoder knob, and mounting screws.
Package contents may vary depending on the retailer or the specific package version.
When this replacement screen is useful
- Replacing a damaged original display: Suitable when the existing Creality control screen is no longer functioning properly.
- Restoring menu-based printer control: Useful for printers that use a 12864 LCD interface with rotary encoder input.
- Maintaining compatible Ender and CR-series machines: Helps keep supported printers operational with a familiar control layout.
Compatibility considerations before installation
Verify compatibility with the exact printer model before fitting the screen. Some Creality printers, such as the CR-10S and Ender 5 Plus, may use touchscreen interfaces that differ from this 12864 LCD configuration.
Technical specifications
| Display type | 12864 LCD panel |
| Control interface | Rotary encoder with push-button |
| Connection | Ribbon cable connection to mainboard |
| Mainboard headers | Typically EXP1, EXP2, and EXP3 |
| Package contents | 12864 LCD screen unit, two ribbon cables, rotary encoder knob, mounting screws |
