2 pin JST-SYP connector for printer wiring and compact wire-to-wire connections

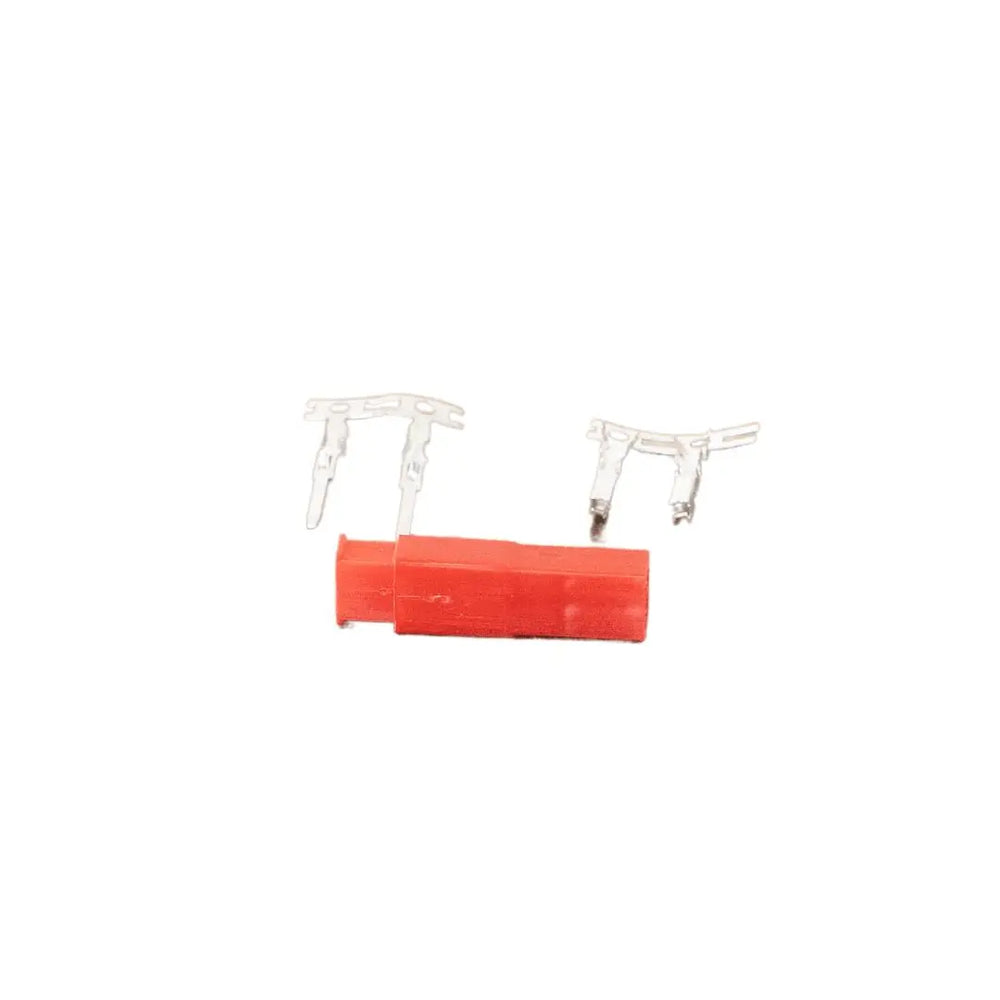

The Crimp Your Own 2 Pin JST-SYP Connector M+F is a red male and female crimp connector set used for printer wiring, especially for connecting wiring to controller boards. The connector is designed for compact wire-to-wire connections and should not be used for high current applications.

The SYP-RCY connector is a compact 2.5 mm pitch wire-to-wire connector intended for a variety of circuits, including signal circuits and power supply circuits, in electrical equipment that continues to become more compact.

Key features of the JST-SYP RCY connector

• 2 pin connector format for simple two-wire connections
• Red JST-SYP housing commonly used in printer and electronics wiring
• 2.5 mm pitch design suited to compact electrical assemblies
• Crimp-style termination for custom wire preparation and assembly
• Locking device helps secure the connection after insertion
• Free spring contact method for stable contact performance
• Efficient insertion and removal for easier connector handling during assembly and service

How to assemble the 2 pin JST-SYP connector

Assembly requires stripping the insulation from the wire and crimping the pins onto each wire lead. After crimping, orient the pin so the latch faces towards the opening on the face of the connector, then insert the pin into the housing until it latches in place.

Where this crimp connector is typically used

This JST-SYP connector is commonly used on 3D printers and similar equipment where wiring needs to connect cleanly to controller boards. The compact RCY wire-to-wire format also fits other low-current electrical projects that use signal or power supply circuits in space-constrained designs.
