What the eccentric spacer is used for

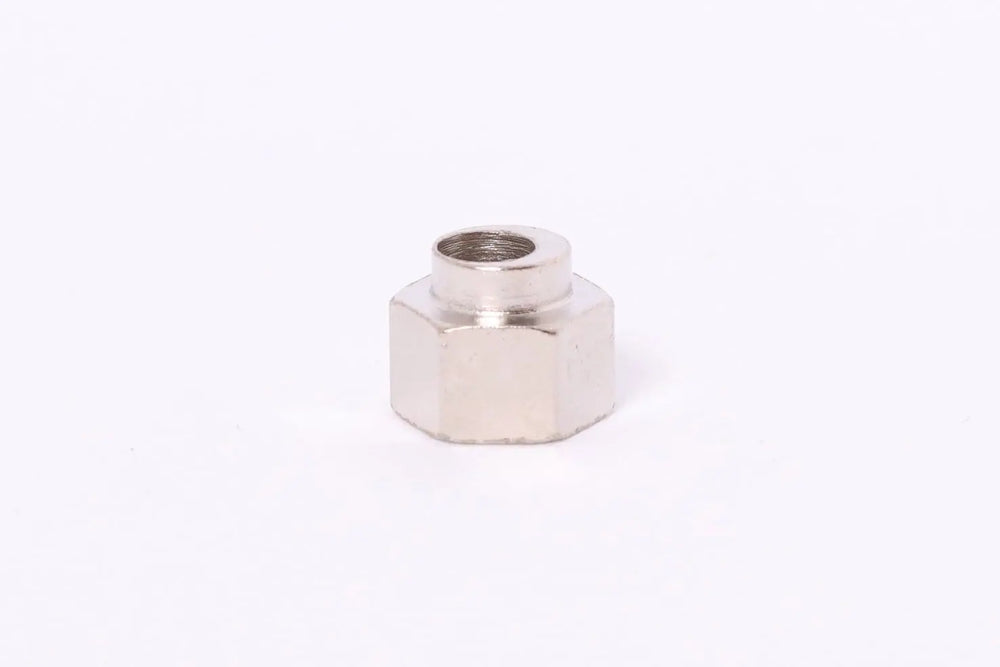

Eccentric Spacers (5mm Bore, 10Hex, 8.5mm) are precision-machined components used to create adjustable spacing in V-slot linear rail systems. The spacer sets wheel position and pressure against the rail, helping motion assemblies maintain smooth travel and accurate linear motion.

These eccentric spacers are commonly used in CNC machines, 3D printers, and other motion control applications where wheel alignment and rail contact need to be fine-tuned.

Key features and functional benefits

• Durable metal construction supports long-term use in mechanical assemblies.
• 5mm bore fits standard 5mm bolts and hardware used in many motion systems.
• 10mm hex profile allows easy wrench adjustment when setting wheel tension.
• 8.5mm offset height provides precise spacing control for alignment adjustment.
• Adjustable wheel pressure helps maintain consistent contact against rails.
• Precision-machined design supports controlled adjustment in V-wheel motion systems.

Where to use an eccentric spacer in motion assemblies

This hardware is suited to V-wheel motion systems that depend on accurate spacing and wheel preload. Common installation points include carriage assemblies and gantry motion setups where rail tracking and wheel tension directly affect motion quality.

Typical applications

• 3D printers built with V-slot rail systems
• CNC routers and CNC machines using V-wheel linear motion
• Laser engravers built around V-slot extrusion and wheel assemblies
• General motion control projects that require adjustable spacing and alignment

In these systems, the eccentric spacer helps fine-tune wheel engagement with the rail so the motion setup can run with smoother travel and more accurate linear motion.

Technical specifications
